SkyZone TS5823 5.8GHz 32CH 200mW Video Transmitter FPV
Quick Find: 1036974

SAVE 26%

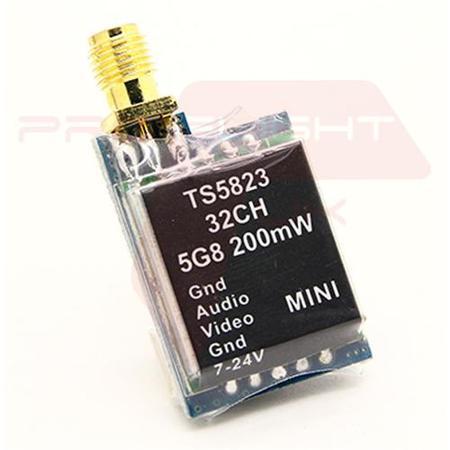

SkyZone TS5823 5.8GHz 32CH 200mW Video Transmitter FPV
  • Micro sized and light weight - perfect for use with small models
  • 32 channels: Cover A, B, E bands and F bands
  • Transmitter frequency: 5645-5945MHz with 200mW power output
  • Transmitting distance > ~1500m (open area)
  • Video Format: NTSC/PAL
  • Output Impedance: 50 Ohm
  • Output Power: 23~24dBm
  • Channel: 32CH
More Info...
Was : £27.00     You save : £7.05
Now   £19.95


compare

The SkyZone TS5823 transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must have for those looking to save size and weight while still getting good performance. The TS5823 is transmitting a full range of 32 channels and only weighs 10g.

Features:

  • Micro sized and light weight - perfect for use with small models32 channels: Cover A, B, E bands and F bandsTransmitter frequency: 5645-5945MHz with 200mW power outputTransmitting distance > ~1500m (open area)


Specification:

  • Video Format: NTSC/PAL
  • Output Impedance: 50 Ohm
  • Output Power: 23~24dBm
  • Channel: 32CH
  • Operating Voltage: 7V~24V
  • Supply Current: 190mA
  • Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
  • Audio Carrier Frequency: 6.5MHz
  • Video Input Level: 0.8~1.2 Vp-p
  • Video Input Impedance: 75 Ohm
  • Audio Input Level: 0.5~2.0 Vp-p
  • Audio Input Impedance: 10K Ohm
  • Connector: RP-SMA
  • Dimension: 40mm x 23mm x 8mm
  • Weight: 8g (without antenna)


Included:

  • TS5823 5.GHz 200mW 32CH A/V transmitter
  • GoPRO USB to A/V cable (for using GoPRO as A/V input)
  • Standard wire lead

NOTE: This is the V2 release of the TS5823 that has had the previous known issues with lines in the display resolved.
