Autel EVO II Dual Rugged Bundle (640T) RTK V3 / Grey

SKU: 102002371 Quickfind Code: 1926038
£6299
Why buy me
  • Photo Resolution: 50MP
  • Video Quality: 640x512@25fps
  • Weight: 1999G
  • Flight Time: Up to 38 Minutes
  • GPS: Yes
click

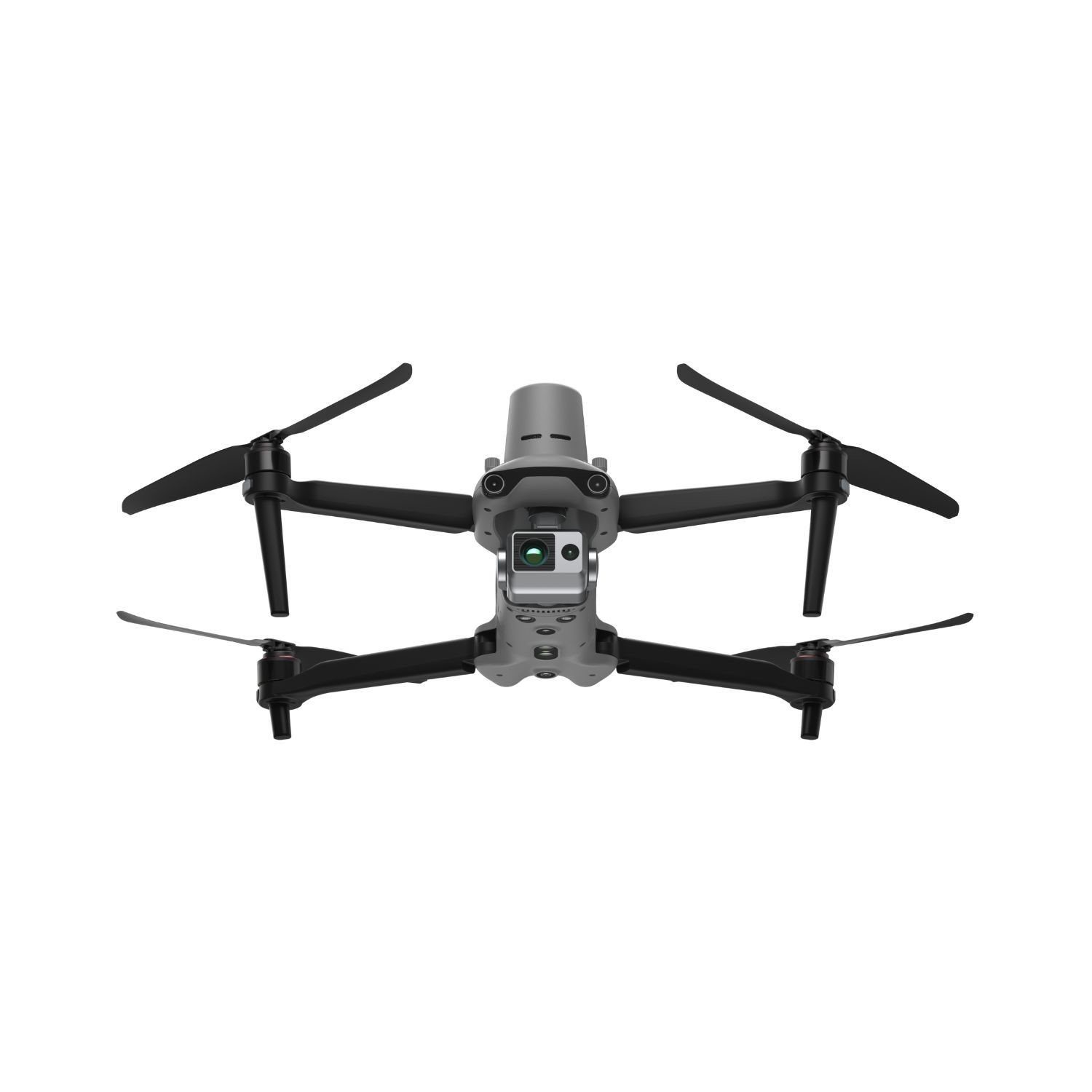

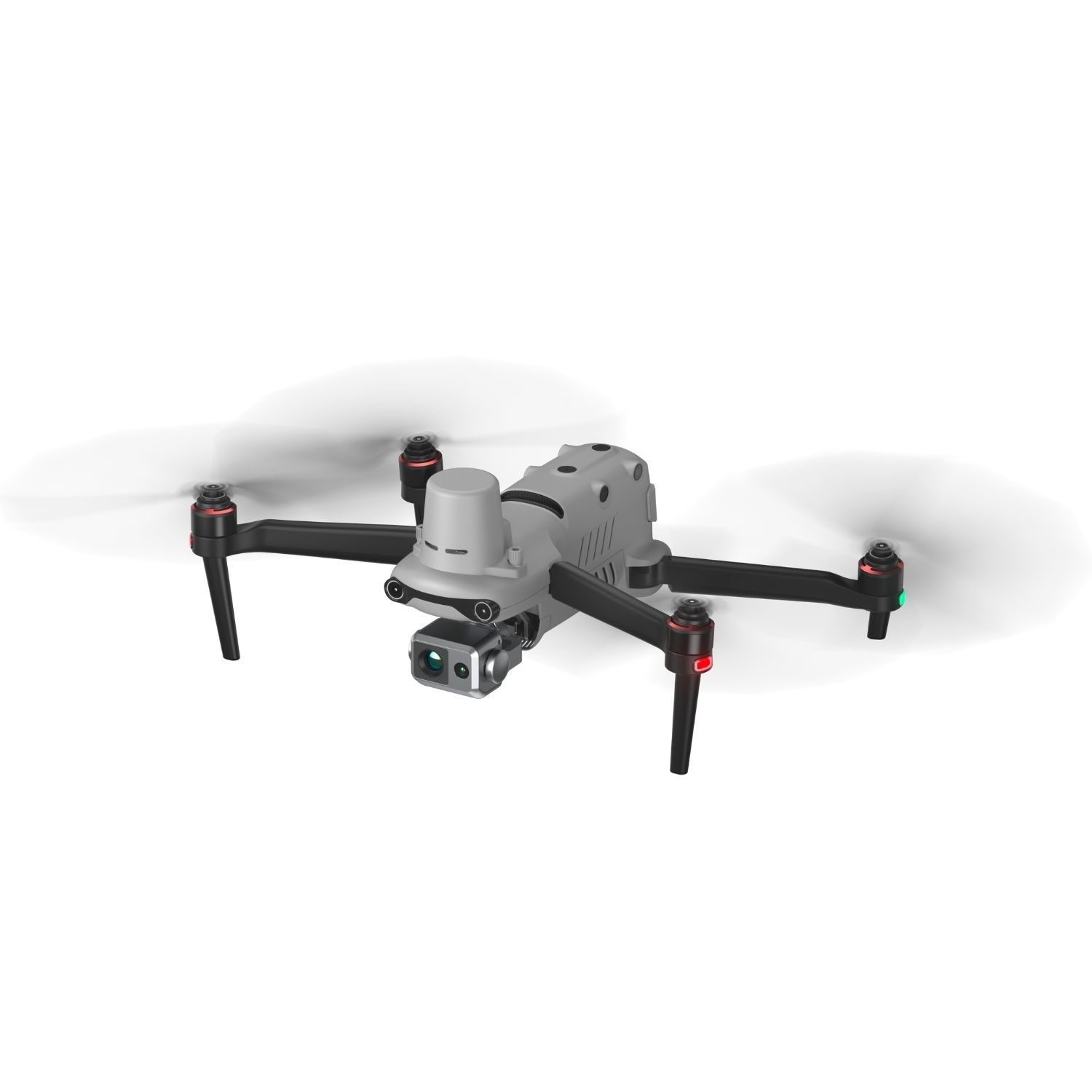

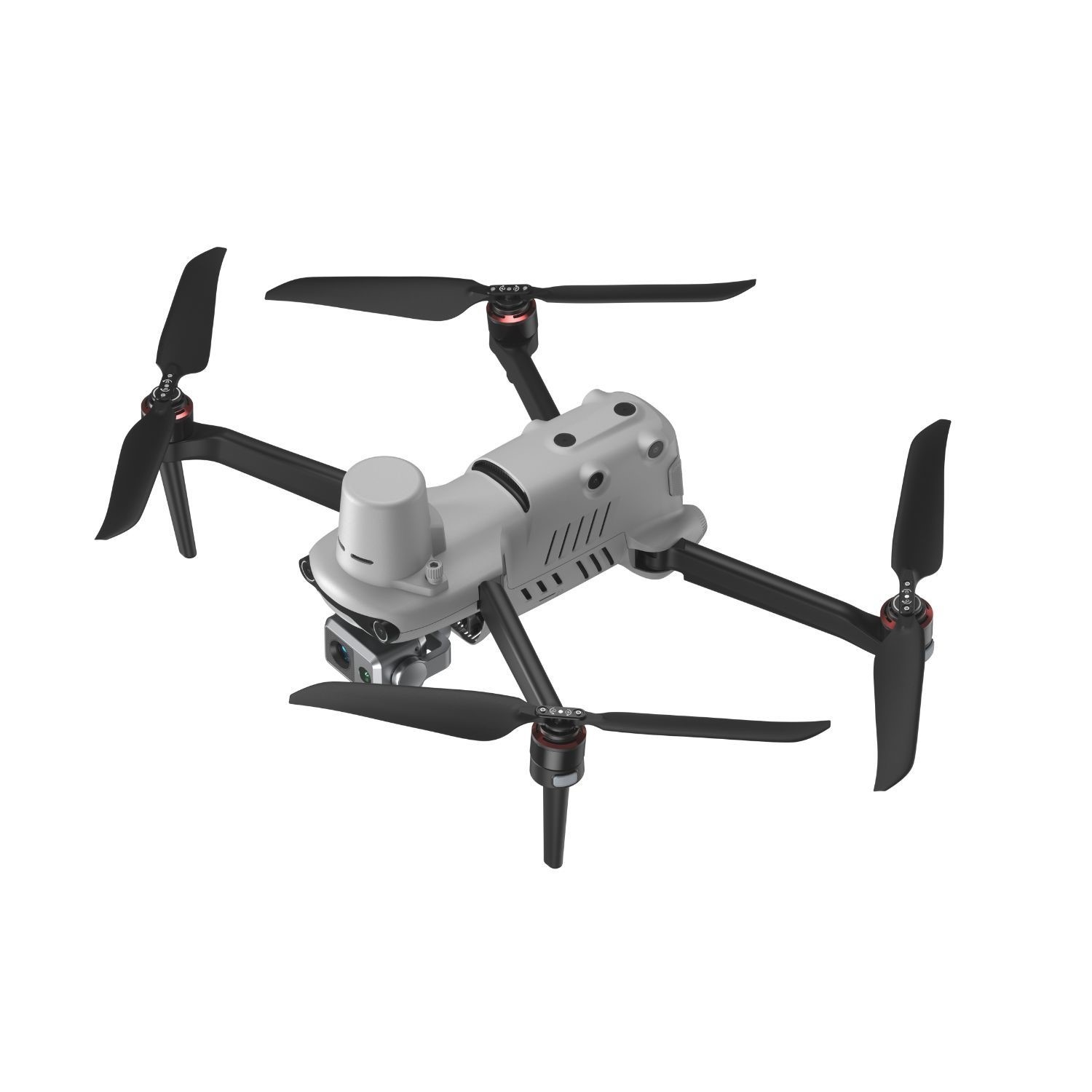

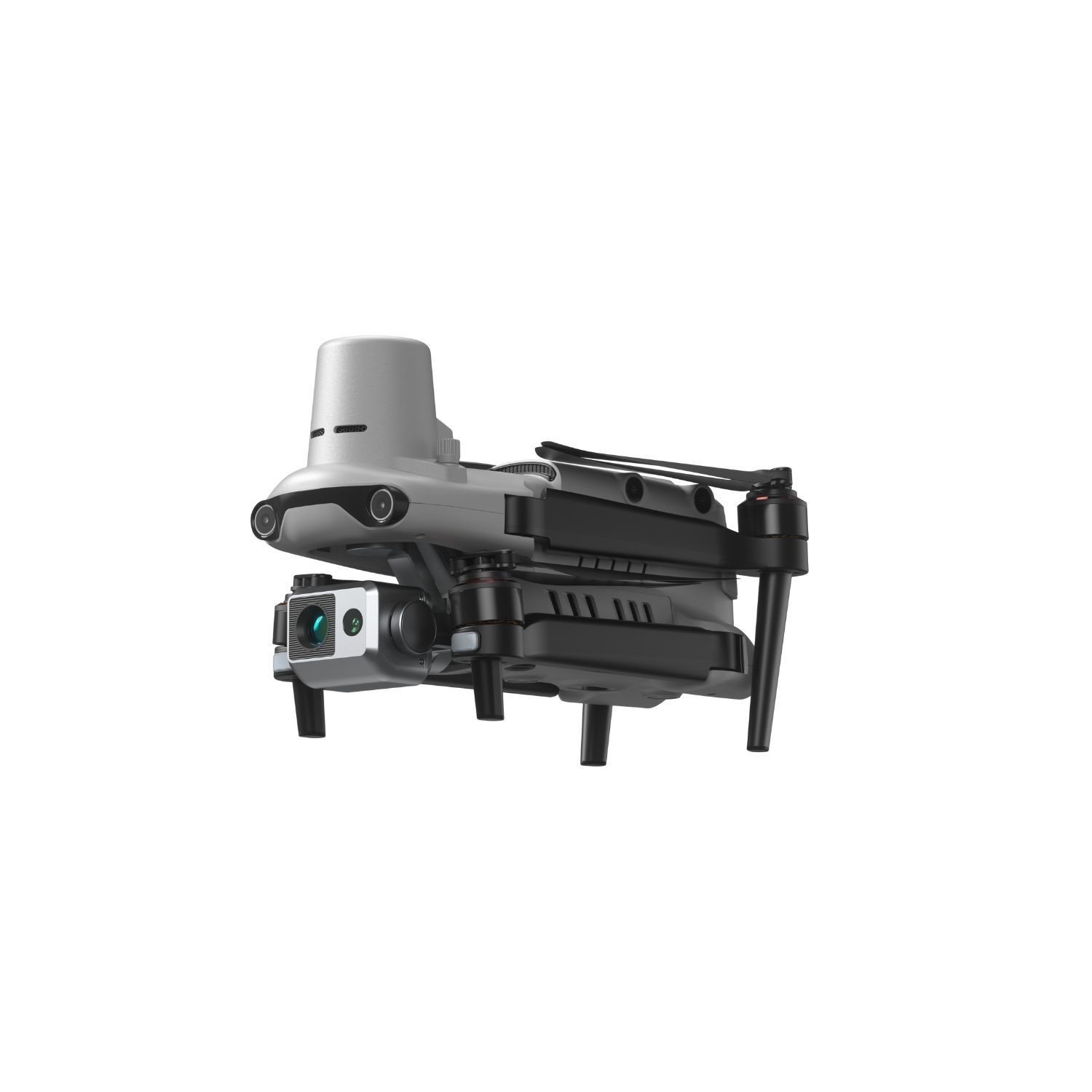

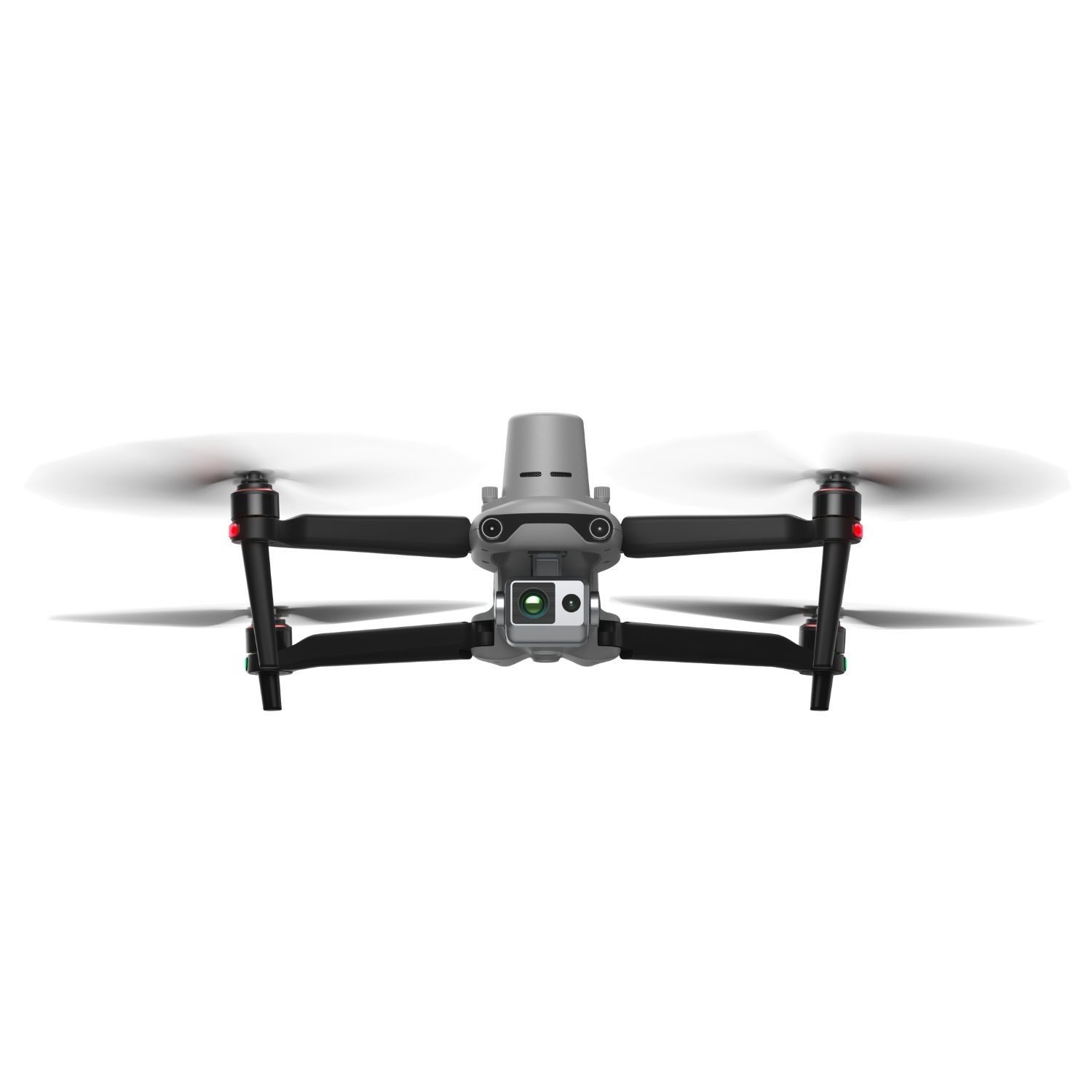

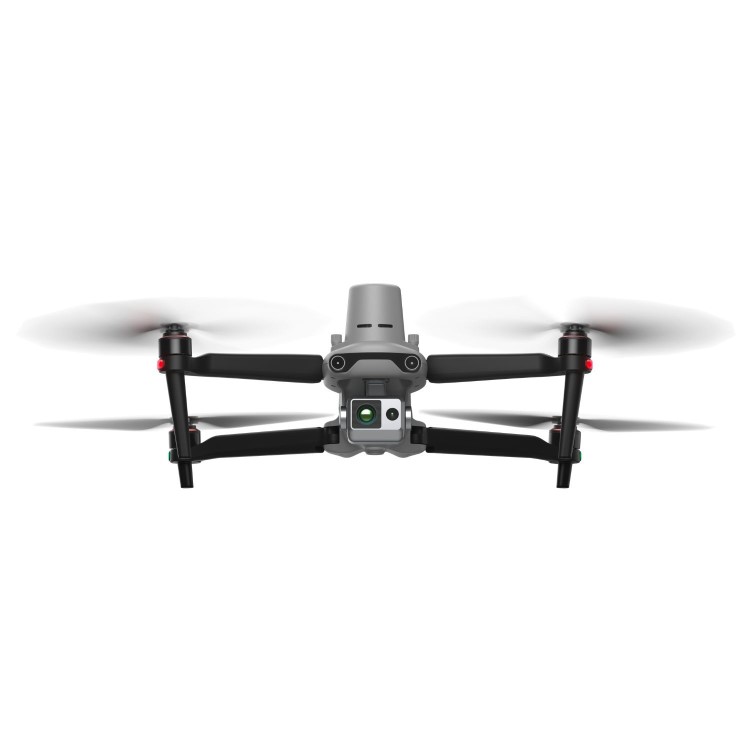

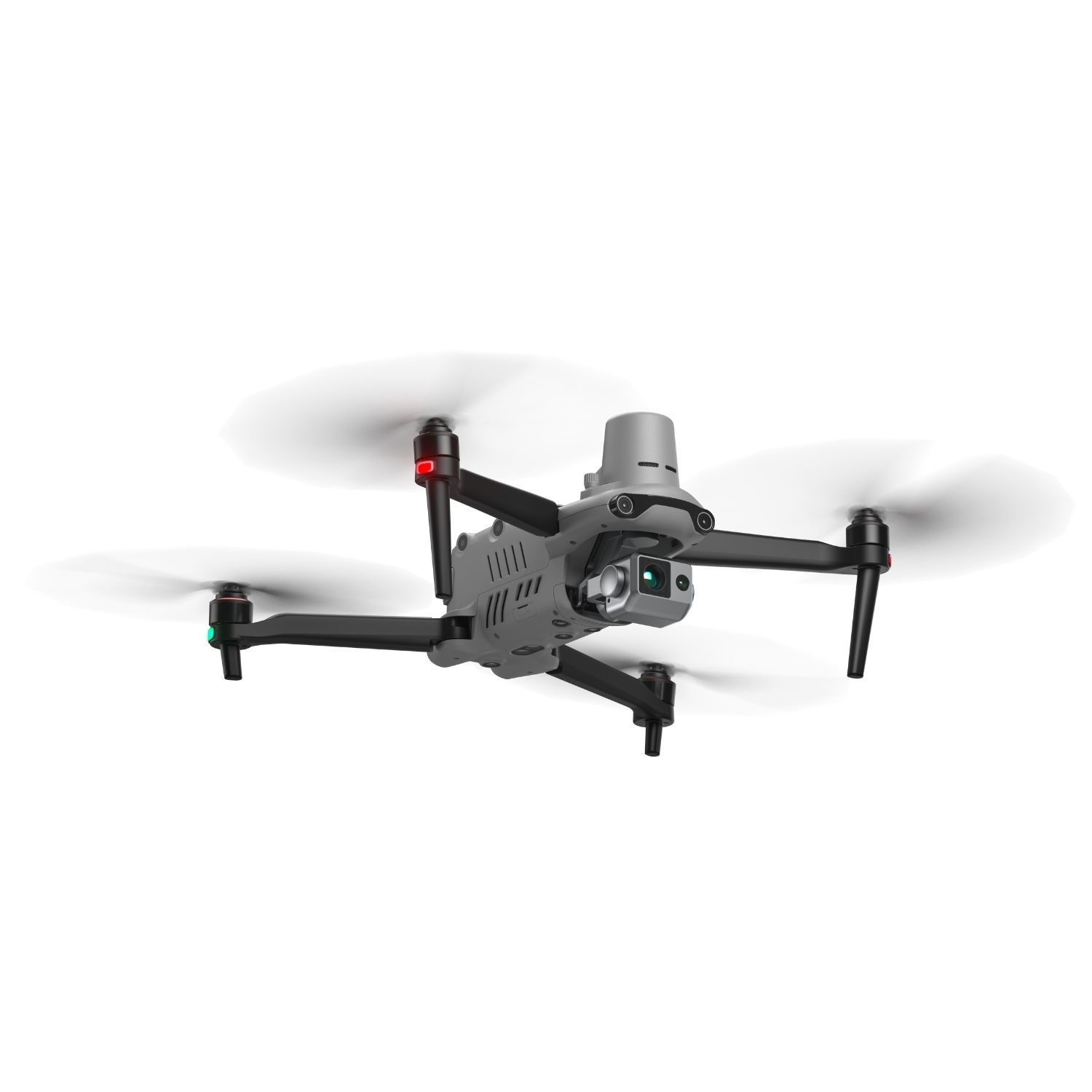

Autel Robotics EVO II Dual 640T V3 Thermal Drone Rugged Bundle

Autel Robotics EVO II Dual 640T V3 is equipped with a 640 x 512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easier than ever to observe distant targets. The system uses a new image processing algorithm, making thermal details clearer and more discernible than other options with similar resolution and hardware.

  • Remote ID Updated
  • 7.9" Smart Controller V3
  • 15km Image Transmission
  • SkyLink 2.0
  • 50MP Picture/0.8" CMOS Sensor
  • 640*512 Thermal Imaging Resolution
  • 10 Thermal Color Palettes
  • 360° Obstacle Avoidance
  • Dynamic Track 2.1
  • ADS-B Signal Receiver
  • 38 Mins Flight Time


640*512 High Resolution
The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.

16x Digital Zoom
EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.

13mm focal length lens
This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.




Multiple Temperature Measurement Modes

Central, Spot, And Regional Temperature Measurement
EVO II 640T V3 Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

Temperature Alarm And Image Enhancement
Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

Powerful Infrared Thermal Analysis Tool
IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T Series, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

Picture-in-Picture Display Mode
Visual and thermal imagery of 640T V3 are combined to help users quickly interpret data and aid in critical decision making.

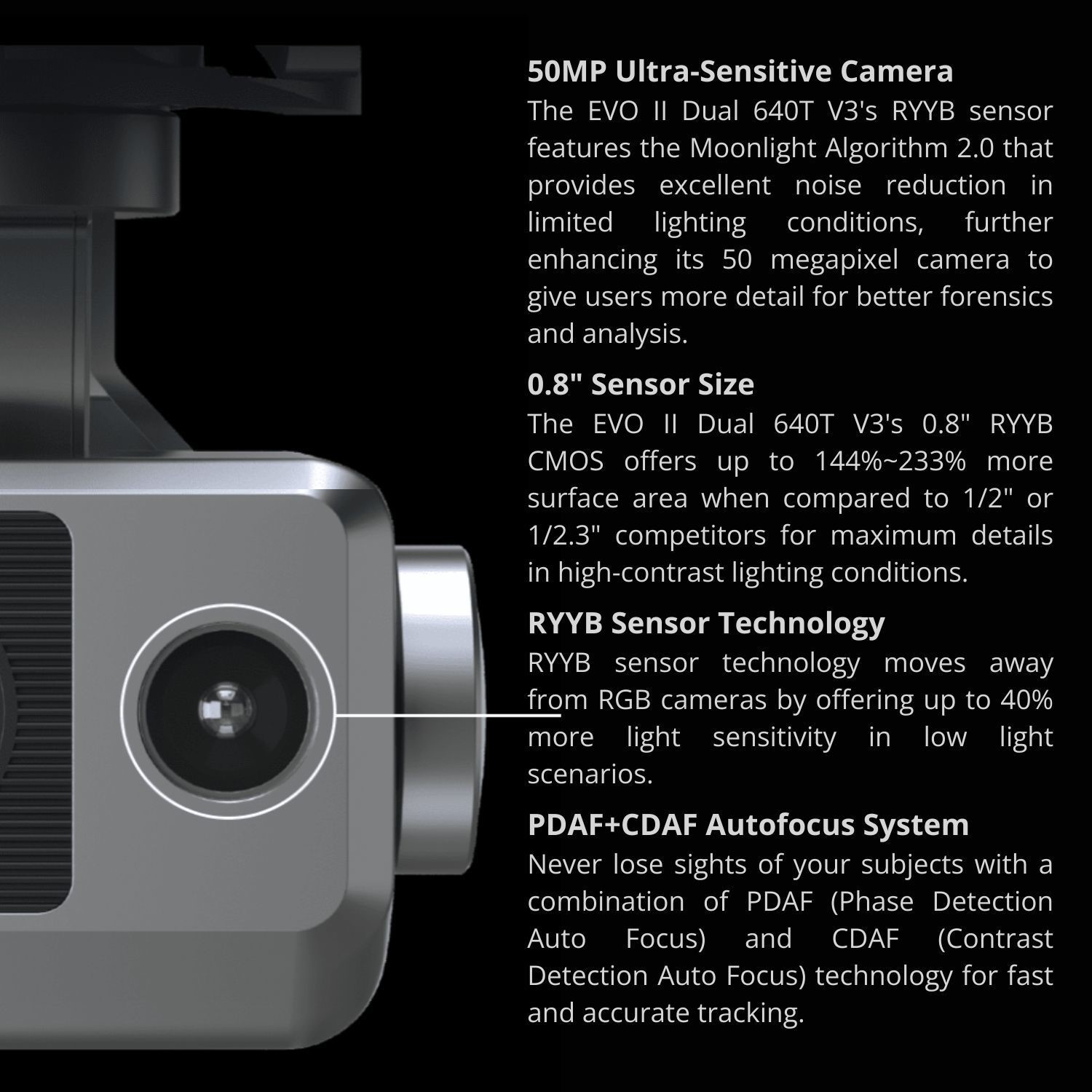

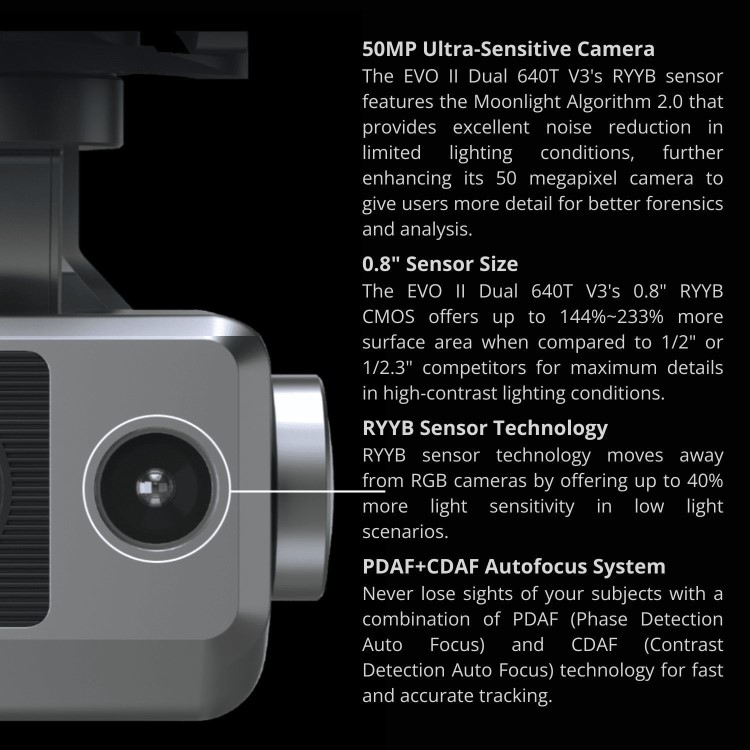

50MP Ultra-Sensitive Camera
The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

0.8" Sensor Size
The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.

RYYB Sensor Technology
RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

PDAF+CDAF Autofocus System
Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

Get The Full Scene
The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.

4K HDR for Greater Dynamic Range
4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

Autel SkyLink 2.0 Video Transmission
SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.

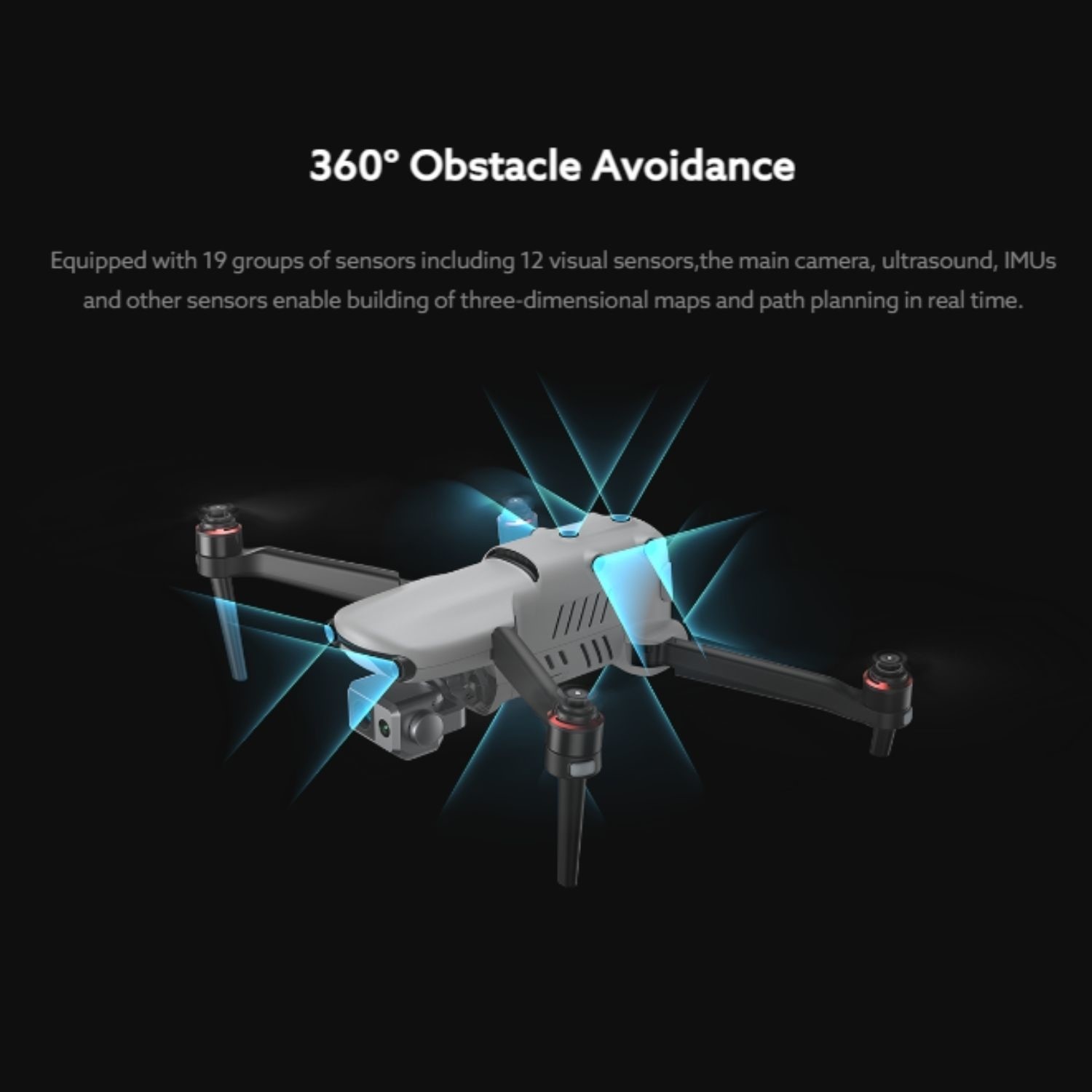

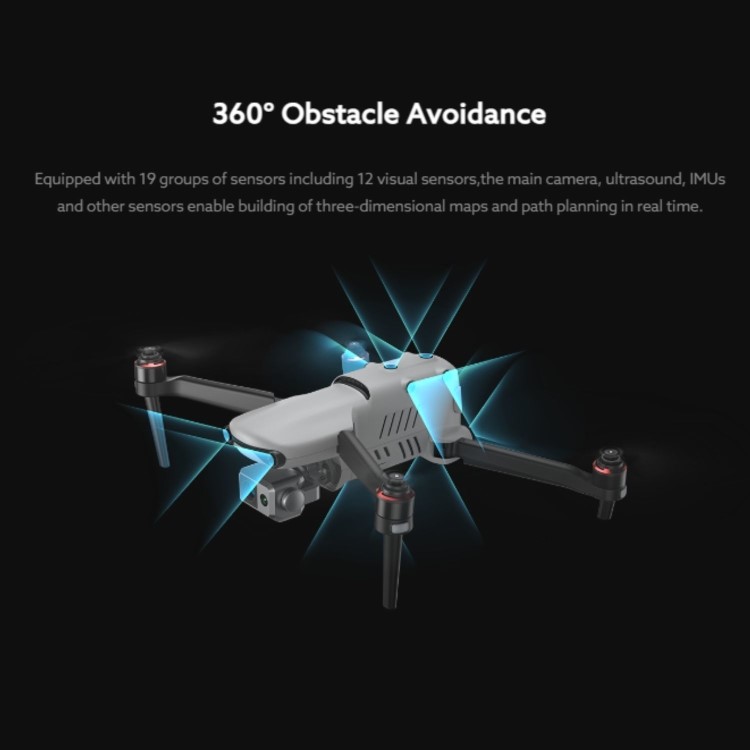

360° Obstacle Avoidance
Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

EVO II - AI Enhanced Dynamic Track
EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

Auto go home & Accurate Landing
EVO 2 Dual 640T V3 will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.



Industry Leading Performance

  • 2 lbs (920g) - Maximum Lift Capability
  • 45 mph (20m/s) - Maximum Flight Speed
  • 27 mph (12m/s) - Maximum Wind Resistance
  • 9.3 miles (15km) - Maximum Transmission Range
  • 38 minutes - Maximum Flight Time

Mission Planner
Rectangular and Polygon mission planners - Those are going to be great for anybody that's dealing with photogrammetry. So anybody that needs to be able to capture a lot of images in a rectangular mission or polygon mission, you're going to be able to do that in an autonomous fashion.Then you're going to be able to take EVO II Dual 640T's images and upload them to your 3D mapping

Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

  • 7.9-Inch HD Touch Screen
  • -4 °F to 104 °F Temperature Range
  • 2000 nits Maximum Brightness
  • IP43 Resistance



Thermal Imaging Function

Picture-in-Picture Mode
Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"

Spot Temperature Measurement
Tap the screen, and the temperature of the selected object will be displayed in real time.

Regional Temperature Measurement
Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area. The temperature measurement frame can be dragged to any position on the screen.

Temperature Warning
Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds

***Note: The temperature alarm takes effects only in Regional temperature measurement mode

Image Enhancement
Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

10 Thermal Color Palettes
White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

Powerful Infrared Thermal Analysis Tool(IRPC)
This free temperature measurement analysis tool is developed for the 640T V3, and enables users to quickly import images, edit and analyze temperature measurement, and to generate detailed reports for sharing and colaboration.(Select the "Word" icon Export report. Generate analysis report)




What's in the Box

  • 1x Aircraft (including gimbal cover Dual 640T thermal camera)
  • 3x Total Flight Batteries
  • 1x 7.9" Smart Controller
  • x4 Total Propeller (Pairs)
  • x1 Battery Charger Power Cable
  • x1 12V Car Charger
  • x1 Battery Charging Hub
  • x1 Smart Controller Charger
  • x1 Smart Controller Charging Cable
  • x1 Hard Carrying Case

Drone Specification
Flight Time Up to 38 Minutes
Weight 1999G
Warranty 1 Year Limited Warranty
Camera
Max Video Resolution 640x512@25fps
Photo Quality 50MP
Built In Camera
Drone Features
Ready To Fly
Ready To Fly
GPS
Collision Avoidance
Control System Smart Controller V3
