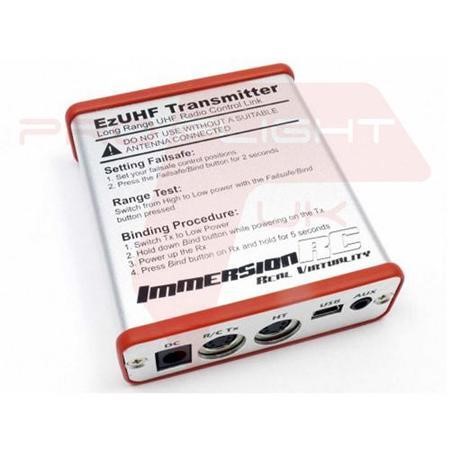

EzUHF Transmitter

The EzUHF R/C control system is a reliable R/C control uplink for FPV and UAV pilots who desire a robust control system for safe control at longer distances. It was designed with the FPV/ UAV pilot in mind, the only such system with a dedicated head-tracker port, ensuring compatibility with a wide range of radios.

Features/ Specifications

• Reliable FHSS Link (Frequency Hopping, Spread Spectrum)
• 433MHz operation with standard firmware
• Spectrally clean GFSK modulation
• Direct head-tracker input, adding head-tracker compatibility to most radios
• Power switch, boost power when at long range
• Standard SMA antenna connector, compatibility with 433MHz/70cm Ham-band antennas (and 459MHz antennas if UK firmware is used)
• Flexible buffered, AC-coupled, PPM input, ensures compatibility with 3.3v thru 9.6v PPM levels
• Standard USB port (Mini-A) for firmware upgrades, and system configuration
• Single pushbutton learning of failsafe positions
• Binding function, which allows binding Single Tx->Rx, Multi Tx->Rx, and Single Tx->Multi Rx
• Mates with 8 channel, and 4 channel EzUHF receivers
• Works with Futaba FF7 and above radios
• Power sourced directly from the R/C Tx (Futaba), or optional DC power jack
• Built in receiver, for future expansion
• Custom extruded brushed aluminum enclosure
• Dimensions 85 x 74 x 23mm 118g
• Power Requirements: 9-12v DC 85mA @ 12v
