This is a graded product. A1 products are "as new" but have been box opened. All A1 products will be fully bubble-wrapped for transportation.
GRADE A1
What stands out
- The most powerful integrated aerial zoom camera on the market
- Fully compatible with DJI's entire series of Matrice Drones
- 30x optical zoom and 6x digital zoom gives a total magnification of 180x
- Sophisticated gimbal technology stabilises the camera to within ±0.01°
- Can be used with intelligent flight modes: TapZoom and Point of Interest
- When used with DJI's Lightbridge 2 it can stream HD footage with increased fidelity and reduced latency
- When used with DJI's Lightbridge 2 it has a maximum range of 3.1 miles (5km)

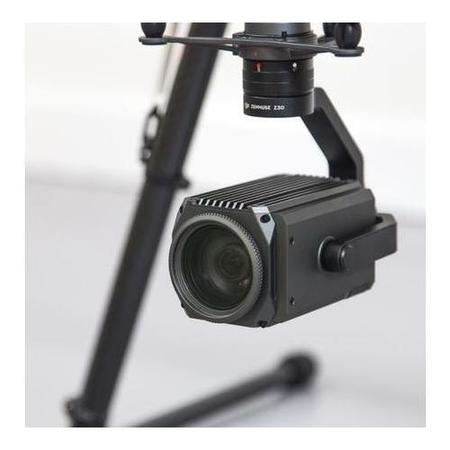

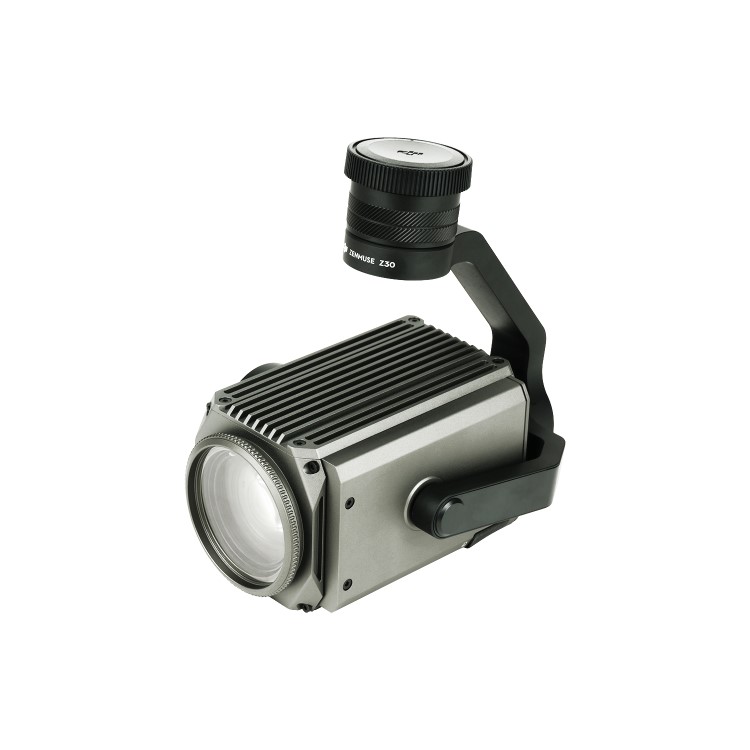

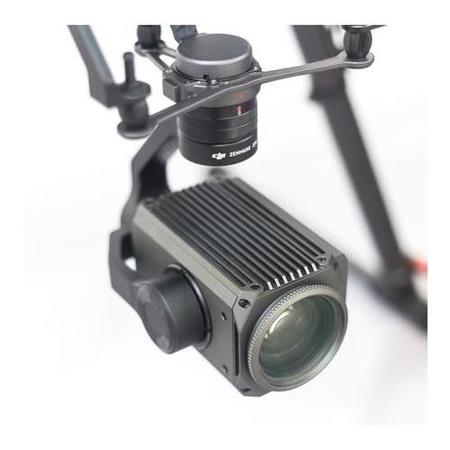

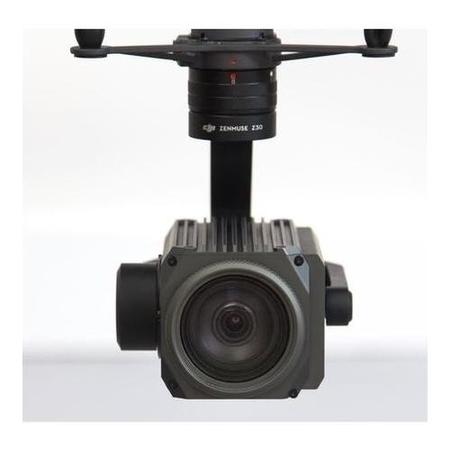

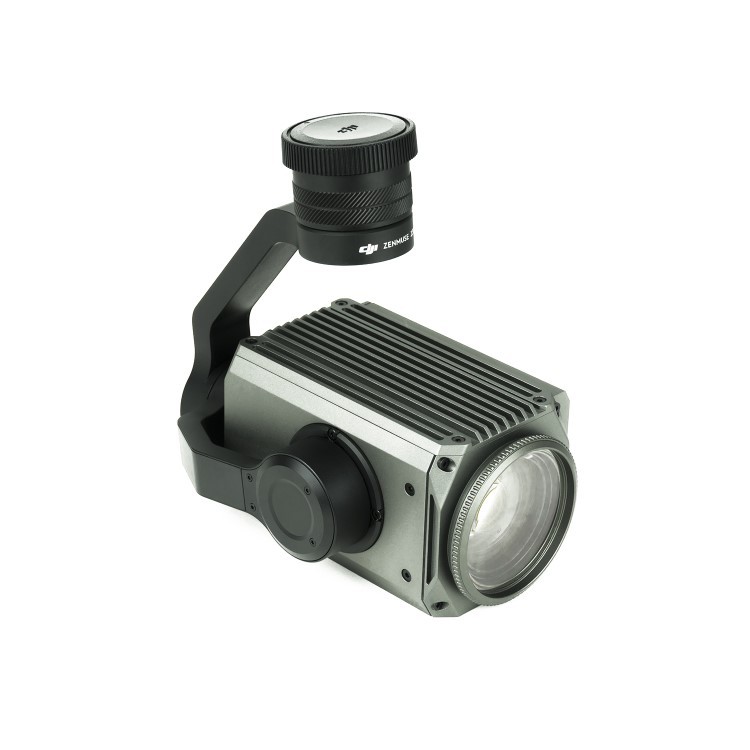

DJI Zenmuse Z30 - The Aerial Industrial Zoom Camera
Aerial platforms are rapidly becoming vital tools for businesses looking to more efficiently collect information crucial to their operations. As the first integrated aerial camera with an optical zoom up to 30x and digital up to 6x, the Zenmuse Z30 offers unparalleled image data capture. Enterprises are now able to capture the information they require from a greater range, making image data collection significantly faster and eliminates the risk of harm to both personnel and equipment.
Built for the Matrice Range
Designed to seamlessly integrate with DJI's Matrice range, the Zenmuse Z30 works right out of the box and gives access to the intelligent features DJI is known for.
The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to detect damage. As a result of letting you conduct inspections from a distance without the need to fly close, not only is speed and efficiency of your operations increased but the risk of collision is obviated.
Adapting the Z30 to your existing Matrice-based aerial system is easy thanks to its integrated design. Simply slide the camera in the mount and you're ready for take-off. The Zenmuse Z30 is designed for use with DJI Lightbridge 2, breaking technical limits to increase range up to 3.1 miles (5km). The integrated controller and intelligent algorithms set a new standard for wireless HD image transmission by lowering latency and increasing image fidelity.
Spec
- Sensor: CMOS, 1/2.8"
- Effective Pixels: 2.13 M
- Lens: 30x Optical Zoom
- F1.6 (Wide) - F4.7 (Tele)
- Optical Wide – Optical Tele: 4.6 sec
- Optical Wide – Digital Tele: 6.4 sec
- Digital Wide – Digital Tele : 1.8 sec
- Focus Movement Time: ∞ - near: 1.1 sec
- FOV: 63.7°(Wide) - 2.3°(Tele)
- Digital Zoom: 6x
- Min. Working Distance: 10 mm - 1200 mm
- Photo Formats: JPEG
- Video Formats: MOV, MP4
- Working Modes: Capture, Record, Playback
- Still Photography Modes: Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec)
- Exposure Mode: Exposure Mode Auto, Manual, Shutter priority, Aperture priority
- Exposure Compensation: ±2.3 (1/3 increments)
- Metering Mode: Center-weighted metering, Spot metering (Area option 12x8)
- AE Lock: Supported
- Electronic Shutter Speed: 1/30 – 1/6000 s
- White Balance: Auto, Sunny, Cloudy, Incandescent, Custom (2000K - 10000K)
- Video Captions: Supported
- TapZoom: Supported
- TapZoom Range: 1-5
- Defog: Supported
- One Key to 1x Image: Supported
- Anti-flicker: 50 Hz, 60 Hz
- PAL/NTSC: Supported
- Supported SD Cards: MicroSD (SD / SDHC / SDXC)
- Max. Capacity: 64 GB, Class 10 or UHS-1
- Supported File Systems: FAT32 (≤ 32 GB)
- Dimensions: 152×137×61 mm
- Weight: 556 g

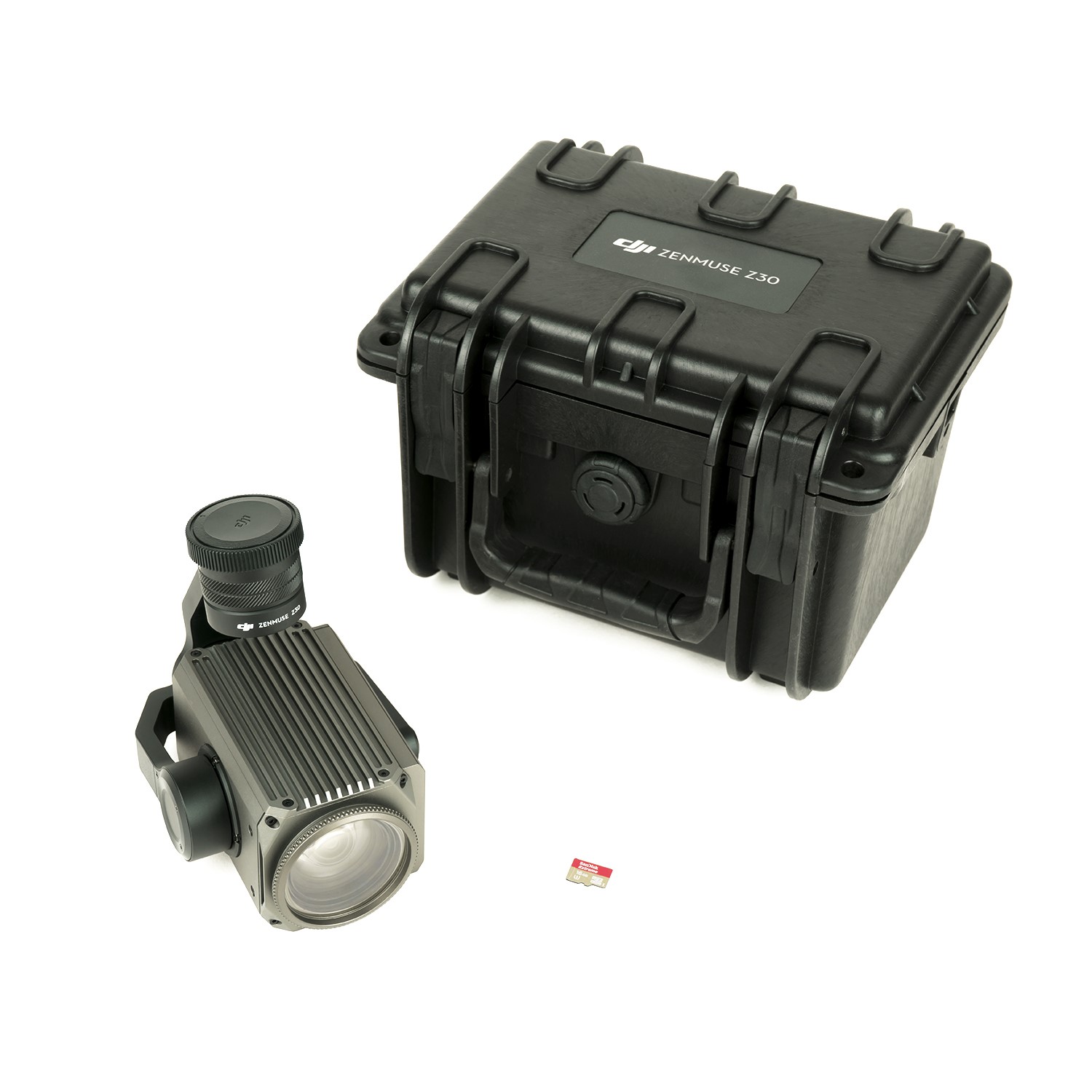

Whats in the box?
- 1 x Zenmuse Z30 Camera & Gimbal
- 1 x Camera Body Cap
- 1 x Lens Rear Cap
