Black Pearl 7 Inch FPV Screen with Integrated Battery

The improved and upgraded Black Pearl RC801 7" FPV screen with built-in dual receivers and diversity system. Dual buffered AV outputs. Unaffected by 2.4GHz R/C Radios.

This easy to use screen is small, lightweight and durable with an excellent picture quality, and comes with an integrated 1100mAh 11.1V 3S battery.

Specifications:

• High resolution: 1024 x 600
• Screen size: 7€
• Screen type: TFT LCD Screen, LED backlight
• Brightness: 300 cd/m2
• Contrast: 700:1
• Viewing Angle: 140/120 degrees (Horizontal/Vertical)
• Image rotation of 180 degrees
• Working Voltage: DV 7-28V (centre positive) (or 11.1 V Li-battery, for example)
• Size: 183 mm x 126 mm x 19.5 mm
• SMA

Features

• Built-in 5.8 GHz dual diversity receiver switches to the best receiver/ antenna for best reception
• Built-in 2 CH 5.8 GHz AV output and 1CH AV input
• Supports HDMI 1.3 digital input
• Supports 8 languages
• Image zoom function
• Full screen display automatically or manually
• General 1/4" thread for tripod mounts
• Working temperature: -10 - 65 degrees C
• 32 Channel

Frequencies on band F (Airwave): 5740 MHz, 5760 MHz, 5780 MHz, 5800 MHz, 5820 MHz, 5840 MHz, 5860 MHz

CHANNEL            FREQUENCY       SW-1     SW-2     SW-3     SW-4

1              5.740GHz             Down    Down     Down       N/A

2              5.760GHz             Up         Down     Down       N/A

3              5.780GHz             Down      Up        Down       N/A

4              5.800GHz             Up           Up        Down       N/A

5              5.820GHz             Down    Down        Up          N/A

6              5.840GHz             Up         Down        Up          N/A

7              5.860GHz             Down      Up           Up          N/A

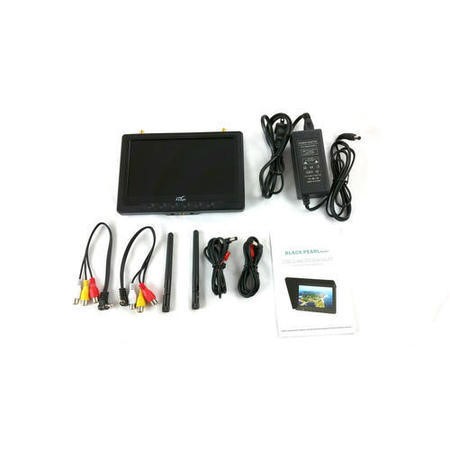

Package contents:

• 1x 7" Screen with built-in diversity dual receivers
• 2x 5.8 GHz 2dbi antenna
• 1x Sunshade
• 1x Power plug
• 2x AV out cable
• 2x Power Cable
