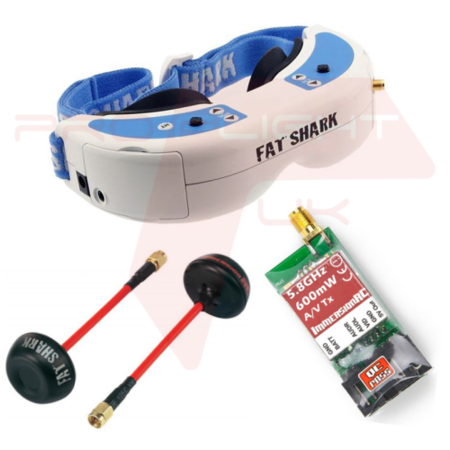

Fat Shark Dominator V2 FPV Transmission Bundle

This package is perfect for anyone looking for the ultimate FPV experience. Includes all the top end equipment required for long range, high quality FPV flights.

Fat Shark Dominator V2

The incredibly popular Fat Shark Dominator goggles have been revamped, improved and upgraded to create the all new Dominator V2's. They boast a wider field of view, a built in DVR and a HMDI in port - just what you've been wanting!

Features:

• Built in DVR
• 35 degree field of view - whilst still using glass optics for that perfect picture quality
• 640 x 480 resolution
• HDMI in
• NTSC/PAL auto selecting
• Adjustable IPD: 57 to 73mm
• Easy to add diopter lens inserts: -2, -4, -6 dpt
• Goggles weigh only 200g so they are light and comfortable to wear
• MicroSD card slot supports up to 32GB
• Record rate of 6Mbps
• No codec supported other than files recorded by the DVR

Goggle Interface:

• 3.5mm AV in/out port
• Power in port
• 3.5mm earphone port
• MiniDIN4 data port (head tracking)
• MicroSD
• Mini HDMI
• RF Module Port

NexWave 5.8Ghz Module

This module slots inside the Fat Shark Dominator Goggles to make them all in one 5.8GHz goggles!  Its as simple as that!

Frequencies (Airwave):

• 5740MHz
• 5760MHz
• 5780MHz
• 5800MHz
• 5820MHz
• 5840MHz
• 5860MHz

ImmersionRC 5.8Ghz 600mw Video Transmitter

• 600mW output power
• Frequencies (Airwave): 5740MHz, 5760MHz, 5780MHz, 5800MHz, 5820MHz, 5840MHz, 5860MHz
• Super-quiet, high efficiency switching regulator
• Small, light weight, all-in-one A/V transmitter solution
• 5V camera power, ideal for a KX131/ SN555, is generated onboard.
• No interference with sensitive RC equipment by design
• High bandwidth stereo-audio channels, ideal for sending down high-speed telemetry data.
• Two sets of A/V connectors, for easy patch-in of an audio source
• FM Audio/ Video Modulation
• 50 ohm antenna impedance
• 1Vpp Video Input level
• 3V pp Audio Input Level
• Input Voltage Range: 6 – 25V (2S-6S)
• 5.8 GHz transmitters which operate above 25mW may require an Amateur Radio Licence in your country.
• Please check with your local radio authority before use.
• ImmersionRC SpiroNet Antennas

Precision manufactured with very tight tolerances and 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance.
Antenna uses a high quality semi-rigid cable, that can be bent to any angle and maintain its shape in any orientation.
Extra long cable on the 4-leaf Skew Planar antenna to clear your head (which blocks 5.8GHz emissions) for goggle installation.
The protective dome is RF-transparent, and protects theantenna from the occasional crash.
SMA connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date.
