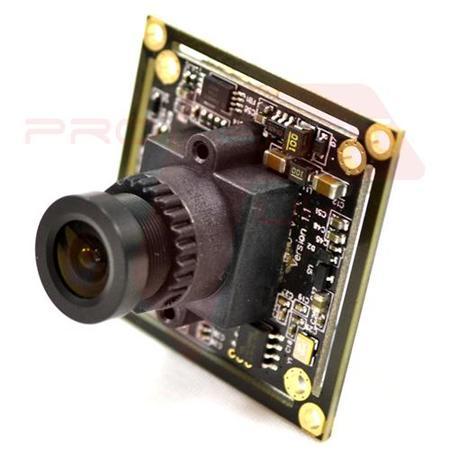

Sony Effio 800TVL 960H WDR FPV Camera

Sony Effio 800TVL 960H WDR FPV Camera

The Sony 960H Effio-V camera is one of the best cameras available for FPV use. The high resolution camera has an IR blocking filter making it well suited for day time flying and offers excellent clarity. The 2.8mm wide angled lens gives the pilot a great field of view and a more immersive experience.

Features:

The camera utilises Sony 960H Double Scan CCD, and Effio-V 4141GG DSP (advanced version of Effio-P), it can produce images at 800TVL high resolution. Besides the high resolution, it has powerful OSD which includes impressive functions, such as ultra WDR (Wide Dynamic Range), 3D-DNR (Digital Noise Reduce) and Auto AGC or AGC+ slow shutter (sense up). The camera is supplied with a 2.8mm wide angle lens enabling a large field of view.

Specification:

• Power Input: 6V - 16V (4S Compatible)
• Consumption: 90mA
• Size: 38x38mm (Cut down size 32x32mm)
• Operating Temperature: -10C - 50C
• 1/3" Sony 960H Double Scan CCD
• Effio-V CXD4141GG DSP (advanced version of Effio-P)
• 800TVL high resolution
• Powerful OSD menu
• 3D-DNR (Digital Noise Reduce)
• WDR (Wide Dynamic Range)
