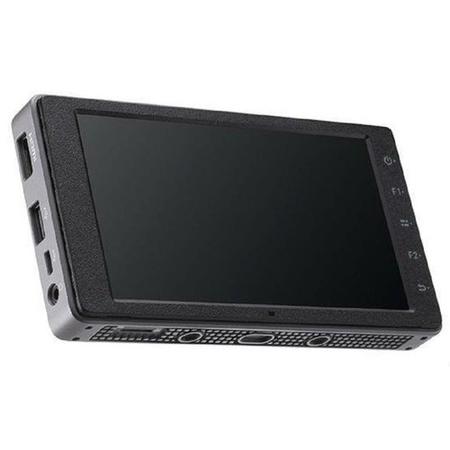

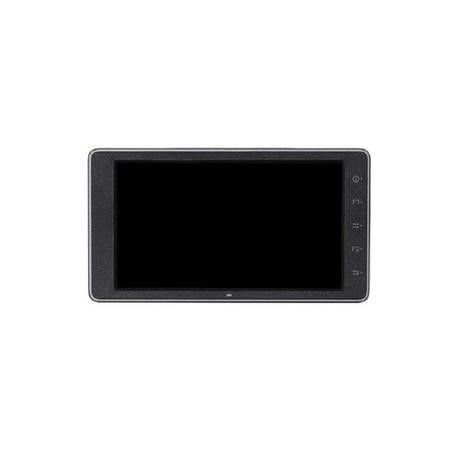

DJI CrystalSky 5.5inch

Top Features

• Bright 1000 cd/m² LCD Screen
• 1920 x 1080 Screen Resolution
• 4K HDMI Output
• Video Recording to Dual microSD Cards
• Onboard Video Editing and Sharing
• Uncluttered Android OS Design
• Optimized Video Decoding
• USB Connectivity
• Compatible with Select DJI Products

1000cd/m² of brightness means that this 5.5" CrystalSky monitor is approximately four times as bright as typical mobile devices. On-screen details are clear and sharp, and colours are vibrant, giving the quality needed to fine tune image composition. A dedicated Sunlight Readability Enhancement mode is designed for processing the image in real-time to ensure more comfortable viewing under bright light.

Smooth Video & A Custom System
The CrystalSky monitor uses optimised video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, video decoding in other smart devices is less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, long latency and more. The CrystalSky monitor’s optimised decoder provides smooth, real-time video with minimal latency.

A newly designed system removes unnecessary Android apps and services and is resistant to viruses and junk software. This ensures that the CrystalSky monitor is able to offer optimum performance at all times. The embedded DJI GO app provides full access to all DJI GO features including aircraft parameter adjustment, camera control, footage management, and playback. Using offline maps, maps can be kept available even if going out of Wi-Fi reach.

Power Supply & Card Slots

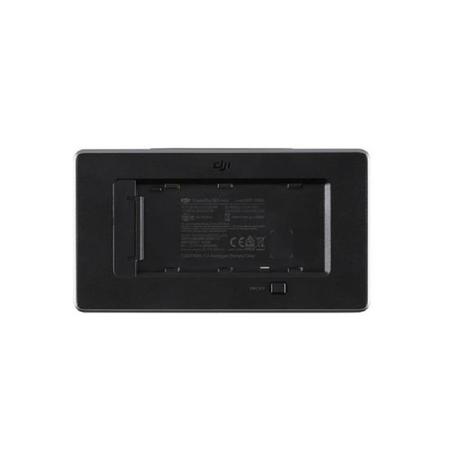

A two cell 4920mAh secondary external battery gives the CrystalSky monitor a longer operating time than comparable mobile devices. It supports rapid charging and controls its discharge rate well even in low temperatures. Used with the 5.5" screen, it can achieve a maximum operation time of  5-6 hours.

Equipped with dual Micro SD Card slots, the CrystalSky monitor’s storage can be extended, or footage recorded on a Micro SD Card can be played back directly on the monitor. It can also be used for footage backups. Using editors built in DJI GO, high-quality edits can be made quickly and instantly shared to social media. The CrystalSky monitor supports H.264 and H.265 video decoding, allowing it to play back these files at 30fps and 60fps respectively. These videos can also be output through its HDMI port.

Compatibility

The CrystalSky monitor’s HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual-band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB-A port.When connected to the internet, the CrystalSky monitor gets easy access to system upgrades, live streaming, photo or video sharing, data synchronisation and more. File sizes are optimised as much as possible to minimise mobile data demands.Onboard Micro USB and USB-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices.

The CrystalSky monitor can quickly connect to the Inspire series, Phantom 4 series, Phantom 3 series (Phantom 3 Professional, Phantom 3 Advanced), Matrice series, and Osmo series (except the Osmo Mobile) over Wi-Fi or via a remote controller USB port, depending on your specific product. Also, CrystalSky easily attaches to the Cendence remote controller without an additional mounting bracket.

Beautifully Designed & Optimised For Extreme Temperatures

The CrystalSky monitors from DJI are the next level of functional design for piloting drones. Sleek lines and a powerful display screen offer both an aesthetically pleasing and completely intuitive system perfectly suited to DJI's product range.

Most smart devices are designed to operate in common temperature ranges. The CrystalSky monitor's external battery has been designed for more extreme temperatures. It is able to operate in as low as -4°F (-20°C) and, with its internal cooling system, functions normally in temperatures as high as 104°F (40°C).
