DJI Matrice 350 RTK with 2x TB65 Intelligent Flight Batteries and BS65 Intelligent Battery Station

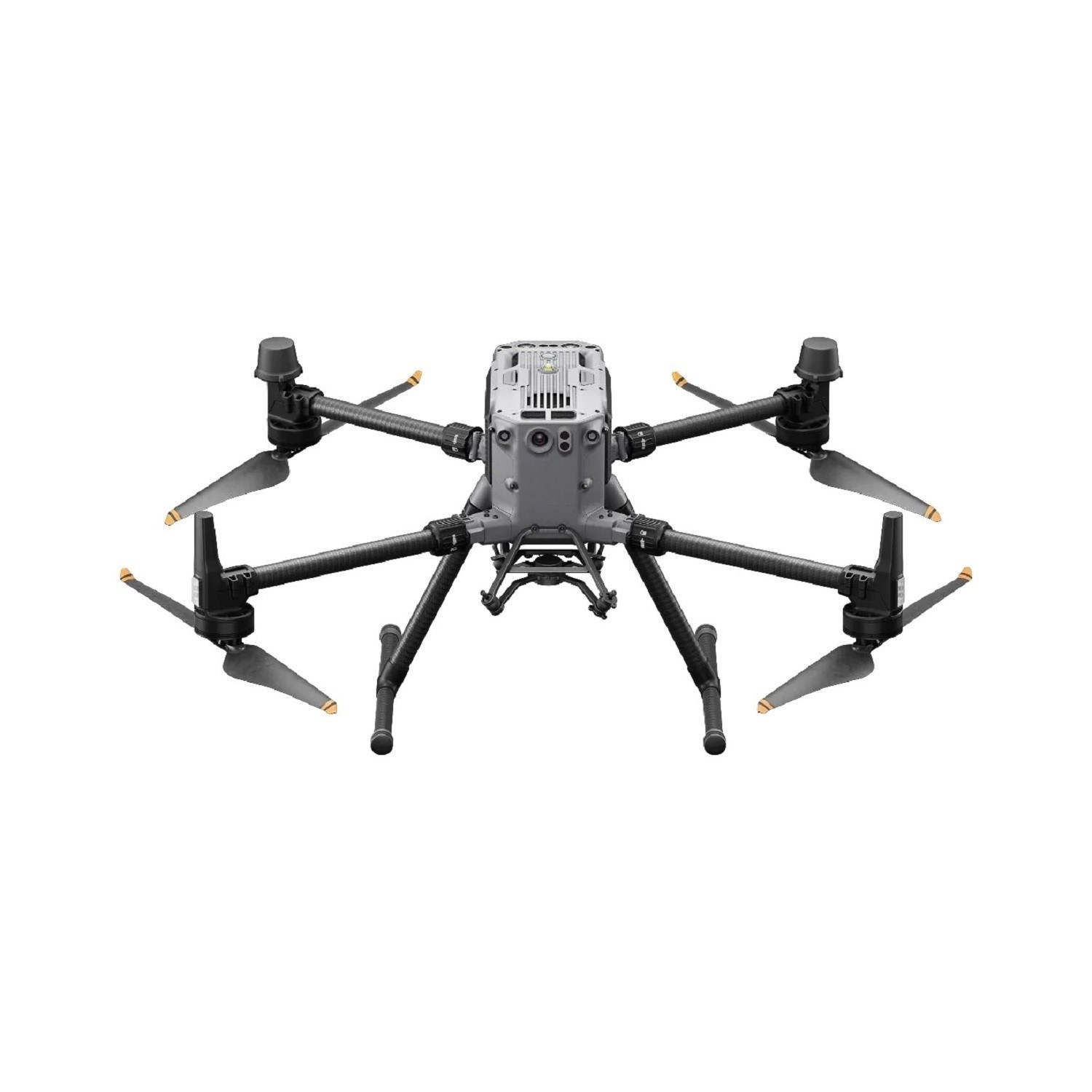

DJI Matrice 350 RTK
Key features
- 6 Directional Sensing & Positioning
- Nightvision FPV camera
- Hot-swappable Battery
- Max flight altitude 7000m
- Supports multiple payloads
- IP55 Rating (protected from limited dust ingress and low-pressure water jets from any direction)
Six-Directional, IP55, Binocular Vision System, and Night-Vision FPV Camera Drone.
An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, more comprehensive safety features, and robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation. All this and more will give you a one-of-a-kind aerial photography and videography experience.
O3 Enterprise Transmission
The Matrice 350RTK features DJI's O3 Enterprise Transmission. It supports triple-channel 1080p HD live feeds and gives you a transmission distance of a maximum of 20 km. A four-antenna transceiver system on the aircraft and remote control select two antennas to transmit signals. However, the four antennas can simultaneously receive signals. This system results in a tremendous improvement in transmission stability and anti-interference.
DJI RC Plus
The DJI RC Plus allows dual-operator mode and comes with a WB37 external battery. This battery has a backup of 6 hours, which allows you to meet your requirements. With a 7-inch high-bright display screen, the DJI RC Plus can operate in temperatures as cold as -4 degrees Fahrenheit, and as hot as 122 degrees Fahrenheit. It has an IP54 rating and is dust- and waterproof. Even if the weather is not in your favor, you can use the remote without any worry. It has user-friendly controls featuring multiple buttons and dials on the top, back, and front of the remote. You can even customize the buttons to use as per your convenience.
New Dual-Battery System
The Matrice 350 RTK is compatible with the new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, reducing the cost of a single flight.
Powerful Payloads
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, and can carry three payloads simultaneously. The aircraft also has an E-Port open interface and a max payload capacity of 2.7 kg, meeting the needs of different operation scenarios like public safety, inspection, and mapping.
Compatible Payloads: Zenmuse H20 Series, Zenmuse H20N, Zenmuse P1 and Zenmuse L1. Third-Party Payloads: Customized payloads like gas detectors, loudspeakers, and multispectral sensors can be combined with Matrice 350 RTK through DJI Payload SDK to expand application fields.
High-Precision Mapping
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operations.
Air-to-Ground Coordination
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to live stream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.
Automated Precision Inspection
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.
Key Differences | Matrice M350 RTK | Matrice M300 RTK |
---|---|---|
Weight with 2x Batteries | Approx 6.47kg | Approx 6.3kg |
Maximum Transmission | 20km | 15km |
IP Rating | IP55 | IP45 |
Controller | DJI RC Plus Waterproof, 7" screen | DJI Smart Enterprise Controller, 5.5" screen |
Battery Cycles | Up to 400 Cycles, new TB65 batteries | Up to 200 Cycles, TB60 batteries |
FPV Camera | Night-vision FPV, 1080p @ 30fps | FPV 960p @ 30fps |
Arm Lock Indicator | Yes, a brand new feature to enhance flight saftey | No |

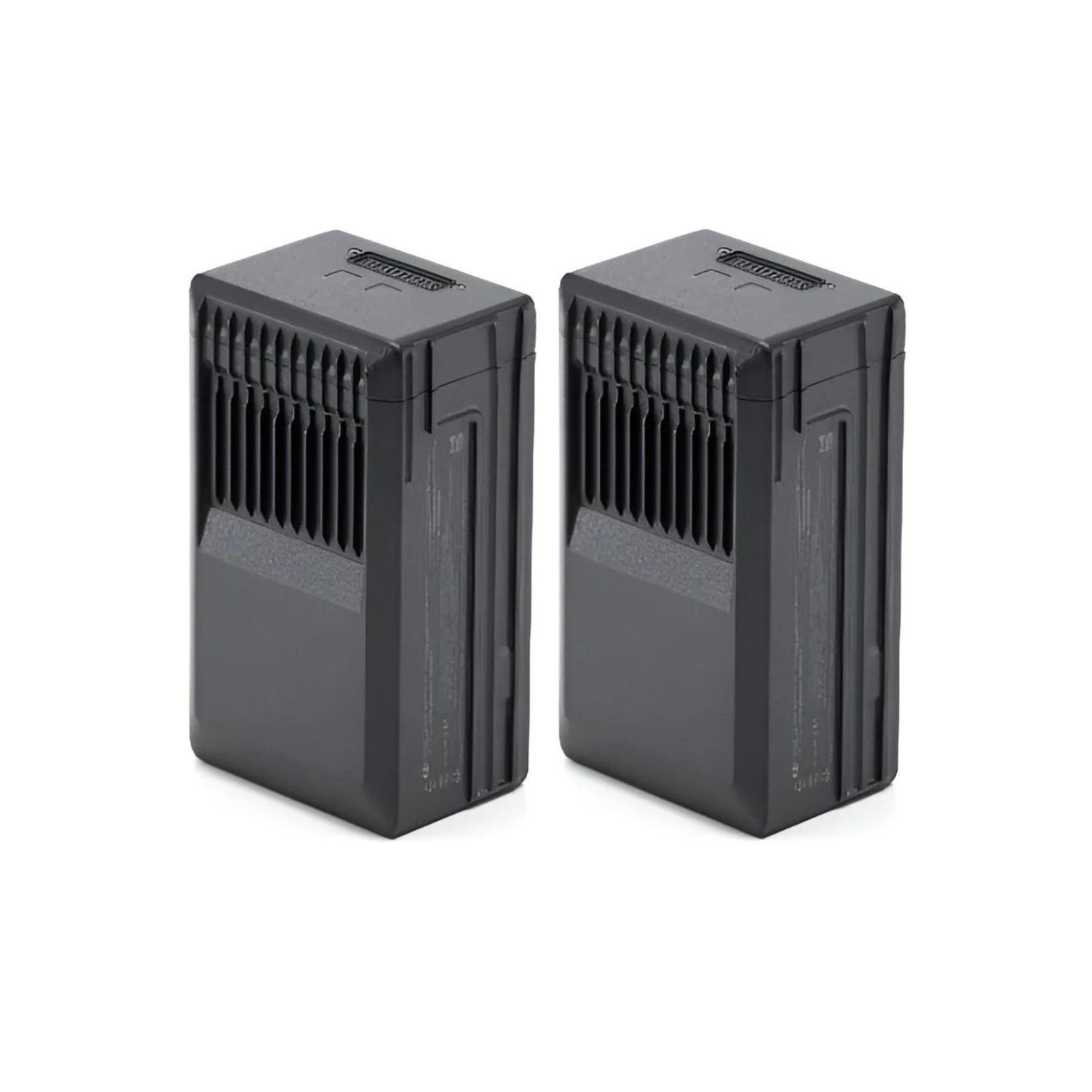

TB65 Intelligent Flight Battery
Key Features
- Capacity: 5880 mAh
- Voltage: 44.76 V
- Type: Li-ion
- Energy: 263.2 Wh
- Weight: Approx. 1.35 kg
- For: Matrice 350 RTK & Matrice 300 RTK
The TB65 Intelligent Flight Battery is compatible with the DJI M350 RTK and DJI M300 RTK. It adopts high-performance, high-energy cells and can be charged up to 400 cycles, reducing the cost of a single flight.
Additionally, it has enhanced heat dissipation performance and an auto-heating system.
The TB65 battery was released with the DJI M350 RTK. When using the battery with the M300 RTK, please ensure that all relevant firmware has been updated. The TB65 battery is an enhanced and upgraded version of the TB60 battery, which is also compatible with the DJI M300 RTK and DJI M350 RTK.
Please note that operators must not mix TB65 and B60 batteries during flight.
DJI BS65 Intelligent Battery Station
The battery station is a one-stop solution for battery charging, storage, and transport. The new Storage Mode and Ready-to-Fly Mode improve charging efficiency and extend the battery life. The new 360 Degree -movement wheels facilitate more convenient transportation and transitions. The battery station provides eight TB65 battery ports, four WB37 battery ports, one USB-C maintenance port, one USB-C charging port, and one USB-A charging port. It can charge up to two TB65 batteries and one WB37 battery simultaneously.
Storage Mode and Ready-to-Fly Mode
These modes likely optimize the charging process for different scenarios. "Storage Mode" might involve charging the batteries to a level that's suitable for long-term storage, helping to extend the overall battery lifespan. "Ready-to-Fly Mode" could optimize charging for immediate flight readiness, ensuring the batteries are charged to an optimal level for flying.
Charging Efficiency and Battery Life Extension
These modes may be designed to enhance charging efficiency and extend the overall lifespan of the batteries. This could involve intelligent charging algorithms that help prevent overcharging and optimize the charging process for longer battery life.
360-Degree Movement Wheels
The addition of 360-degree movement wheels suggests that the charging hub is designed to be easily portable and maneuverable. This feature would make it more convenient to transport the charging hub and batteries, especially in situations where you need to move your equipment around frequently.
Battery Compatibility
The charging hub appears to be capable of charging two TB65 batteries and one WB37 battery simultaneously. This is useful for drone pilots who use multiple batteries during their flights and need a convenient way to charge them all at once.
What's In the Box
- DJI M350 RTK x 1
- BS65 Battery Station x 1
- TB65 Battery x 2
- Landing Gear x 2
- Propellers x 2 Pair (installed)
- Propellers x 1 Pair (spare)
- Shock Absorber Ball x 4
- DJI RC Plus x 1
- WB37 Battery x 1

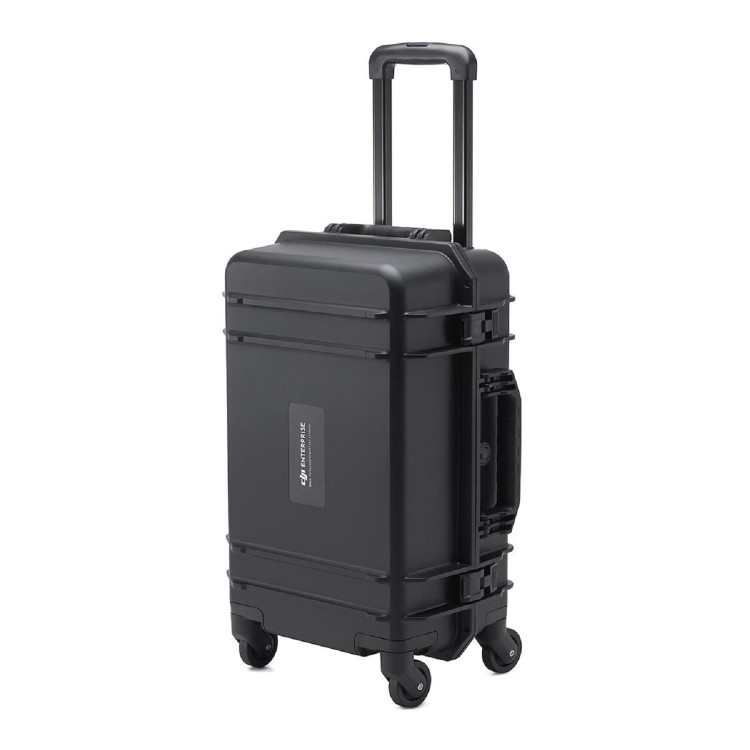

- Aircraft Case x 1
