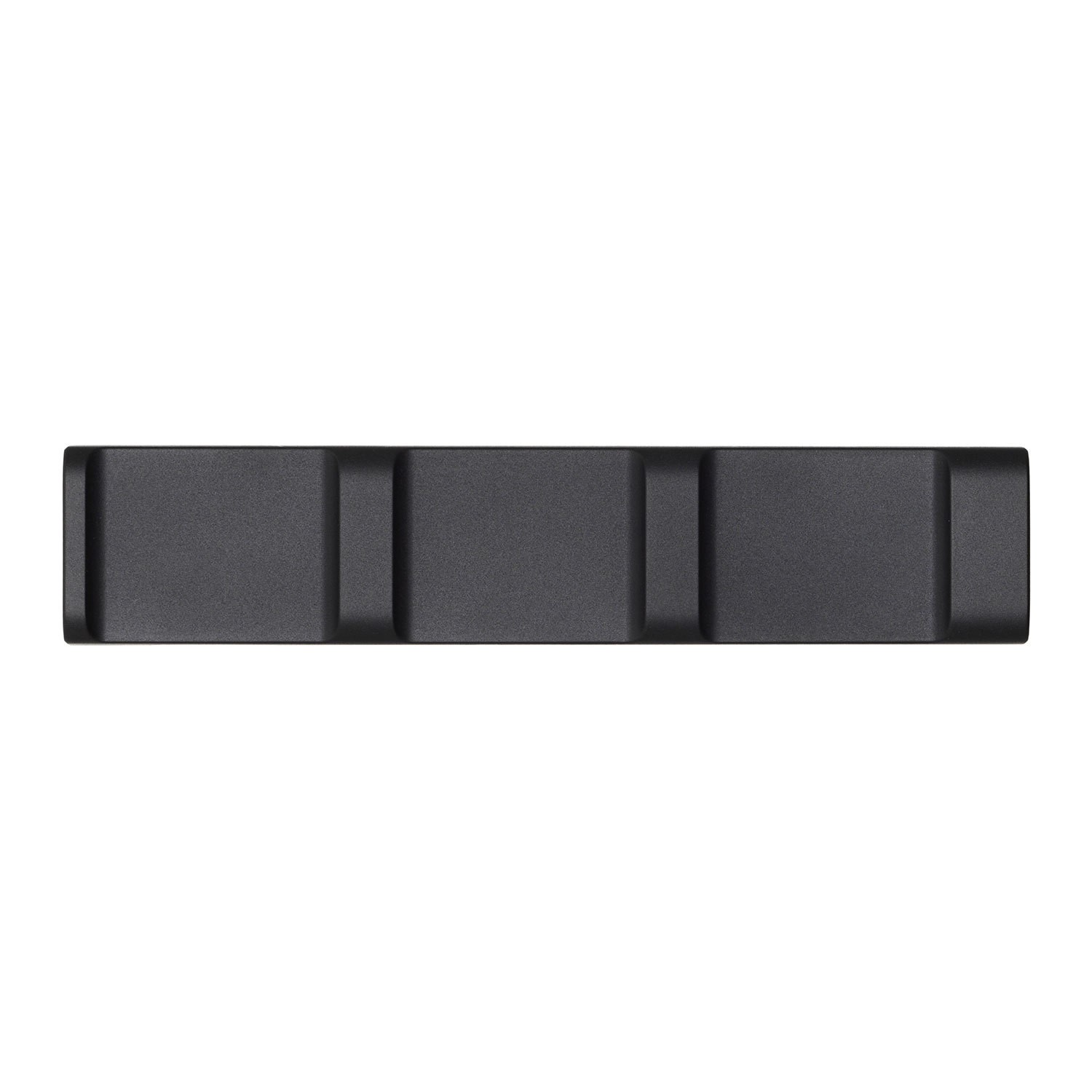

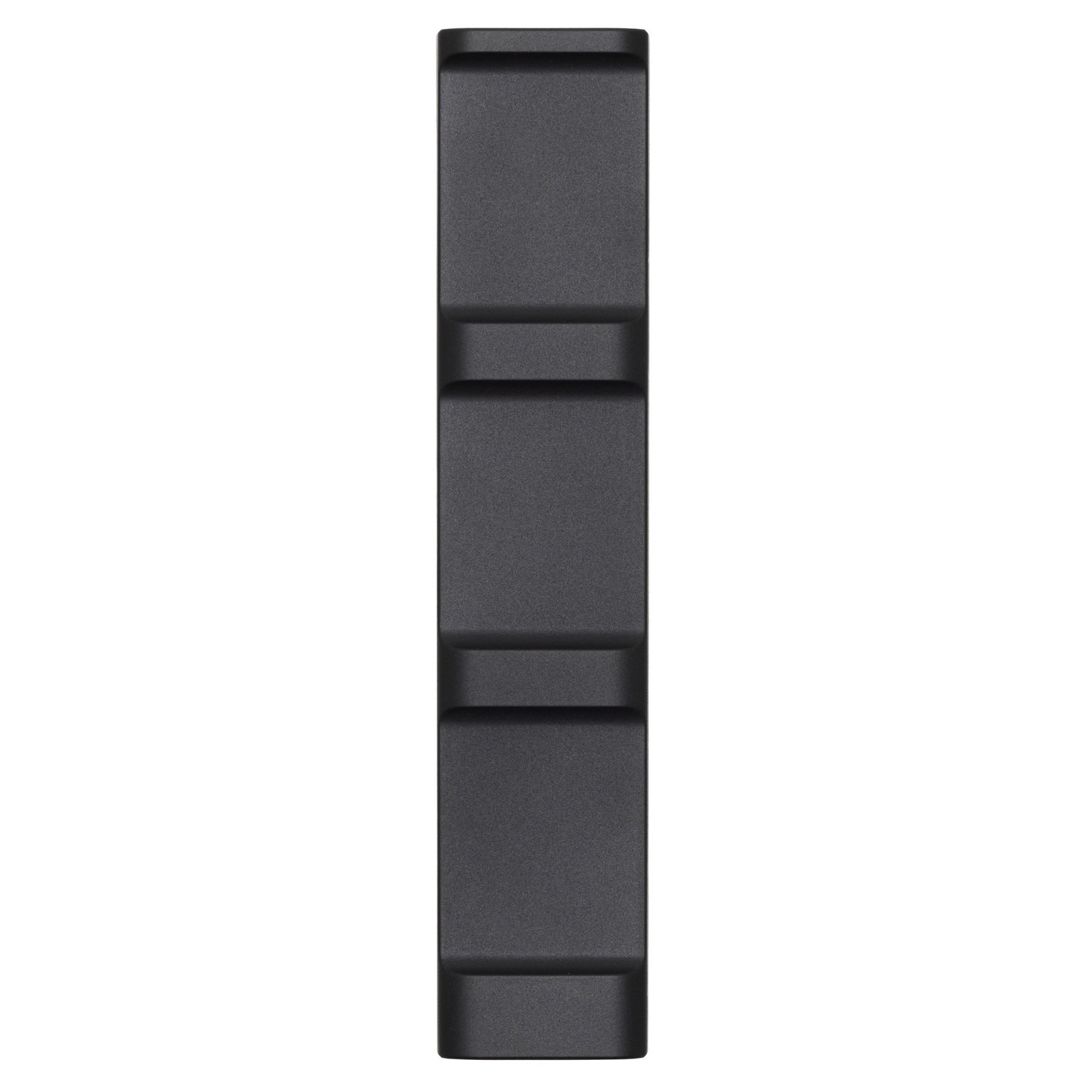

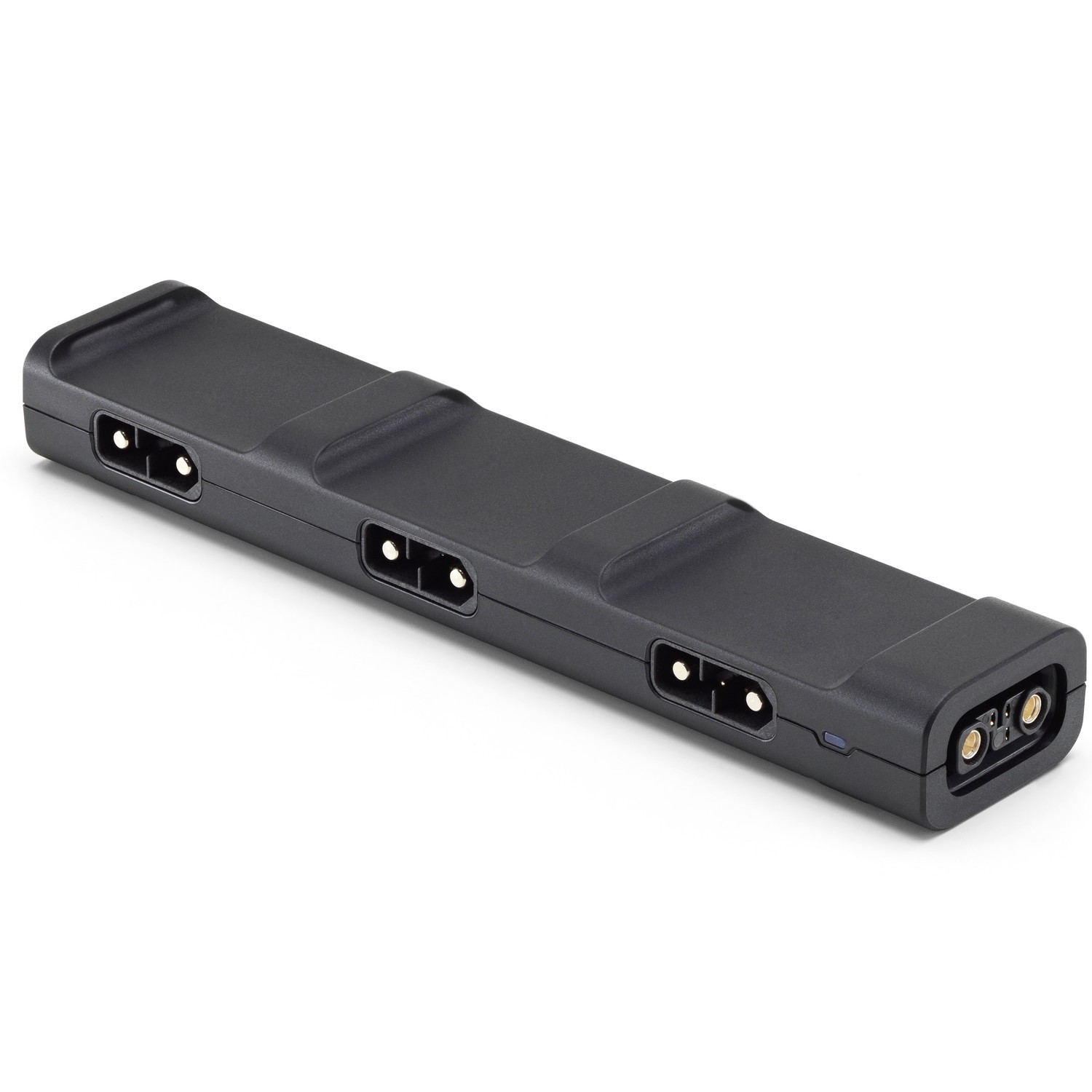

The DJI FPV Battery Charging Hub is designed to allow users to conveniently recharge up to three FPV flight batteries simultaneously without needing constant supervision.
Key Features
Compatibility: The DJI FPV Battery Charging Hub is designed to work with DJI FPV flight batteries. It requires a DJI FPV Battery Charger (sold separately) to provide power to the hub, and this charger draws power from an AC outlet.
Battery Detection: Once the batteries are connected to the hub, it can detect the battery life of each connected battery. This information helps the hub determine the sequence in which the batteries should be charged.
Charging Sequence: The hub prioritizes charging the battery with the highest remaining charge first. This means that you'll be able to grab the battery with the most power left and get back to flying sooner.
Charging Time: A full single battery recharge takes approximately 55 minutes. This relatively quick charging time ensures that you can get back into the air relatively soon after a flight.
LED Status Indicator: The hub features an LED status indicator that provides important information about the charging process:
Solid yellow: Indicates that no battery is attached to the hub.
Pulsing green: Indicates that charging is in progress for at least one of the batteries.
Solid green: Indicates that all connected batteries are fully charged.
Blinks yellow: Indicates that the battery temperatures are either too low or too high. This could be due to environmental conditions affecting the batteries.
Solid red: Indicates a power supply or battery error. This could be due to issues with the power source or problems with one of the batteries.
Overall, the DJI FPV Battery Charging Hub is designed to simplify and expedite the process of recharging your FPV flight batteries, ensuring you can spend more time flying and less time waiting for your batteries to charge.
Compatibility
FPV Intelligent Flight Battery
FPV AC Power Adapter
FPV Car Charger
Specification
Charging Temprature: 5° to 40°C
Input: 25.2V, 3.57 A
Charging Time: About 55 Minutes
