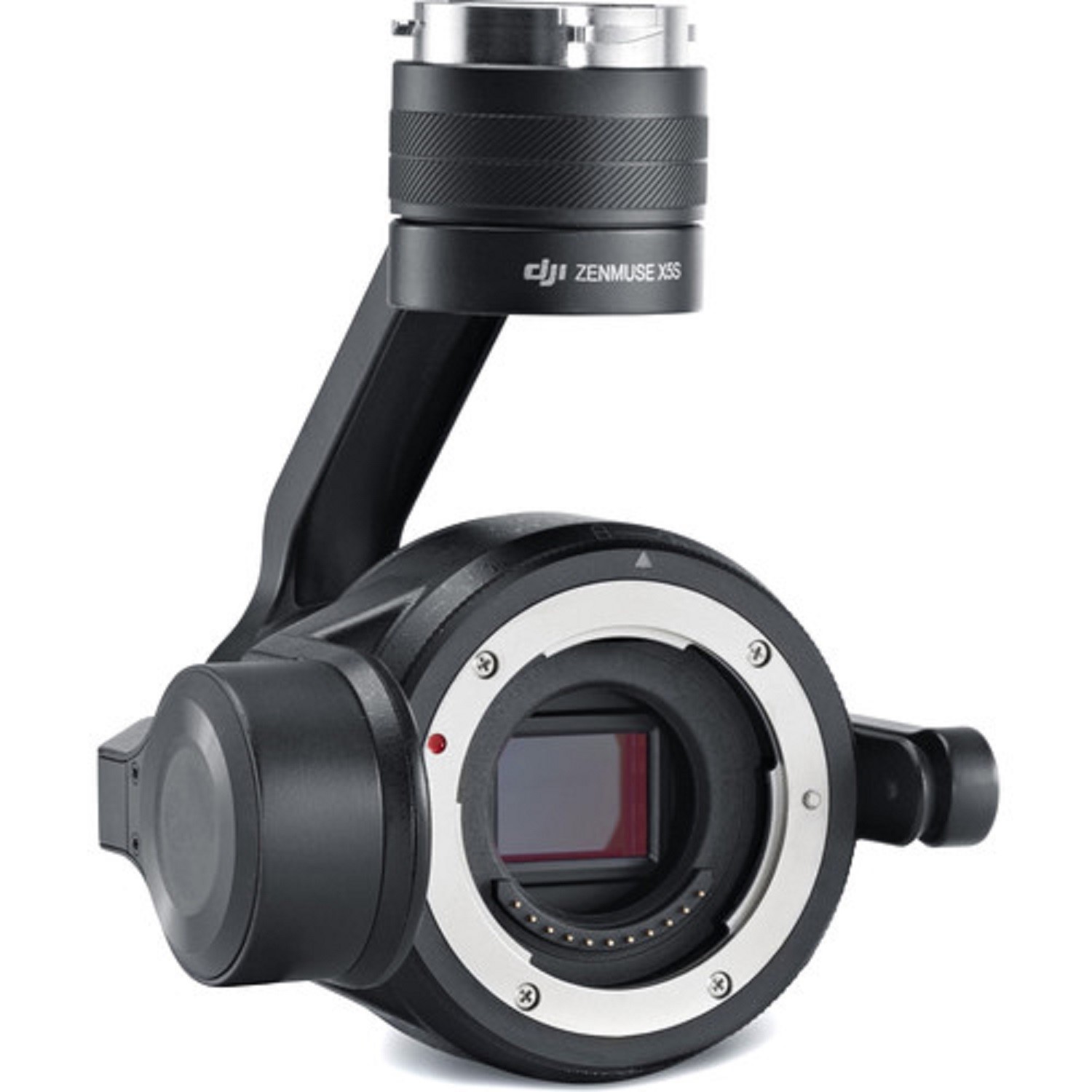

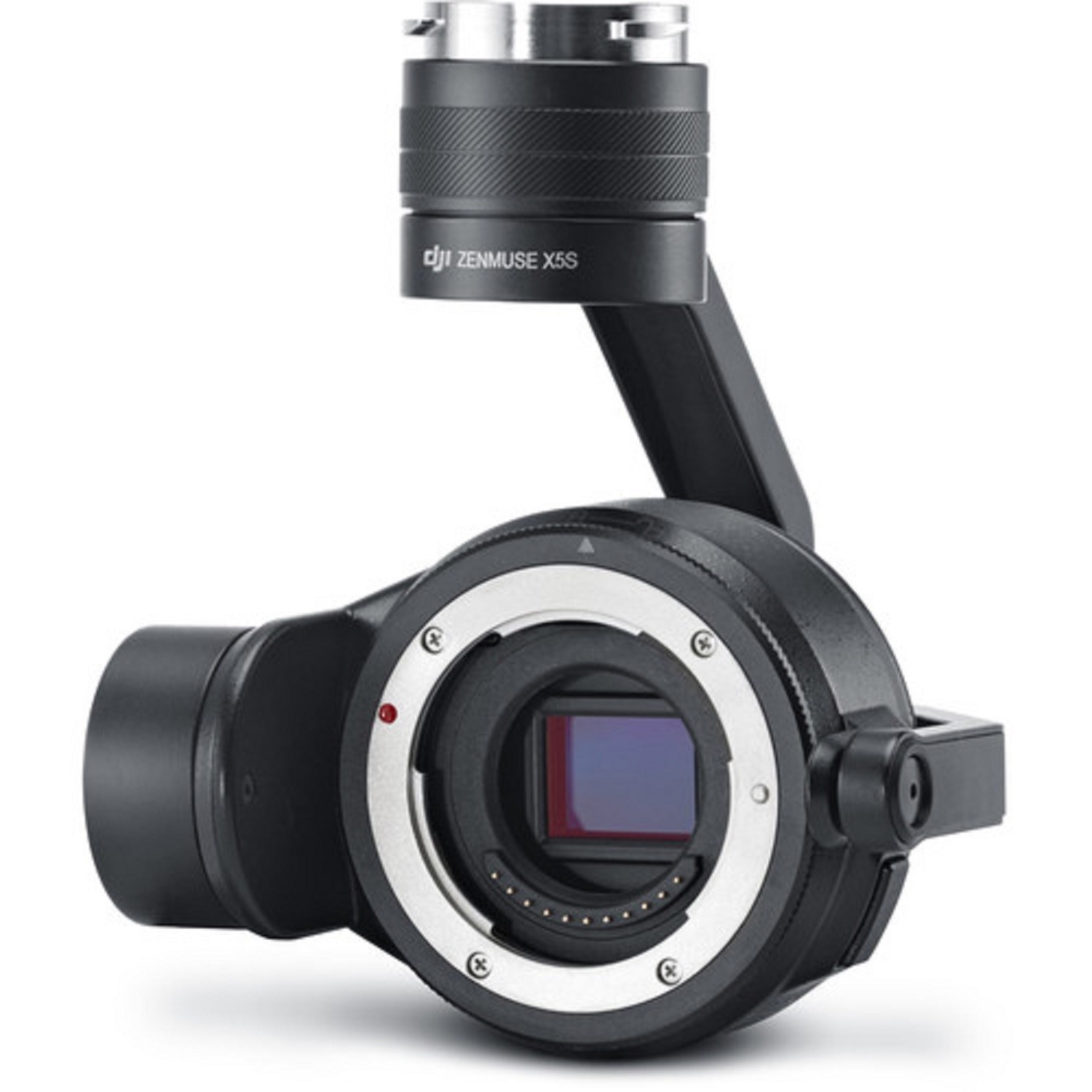

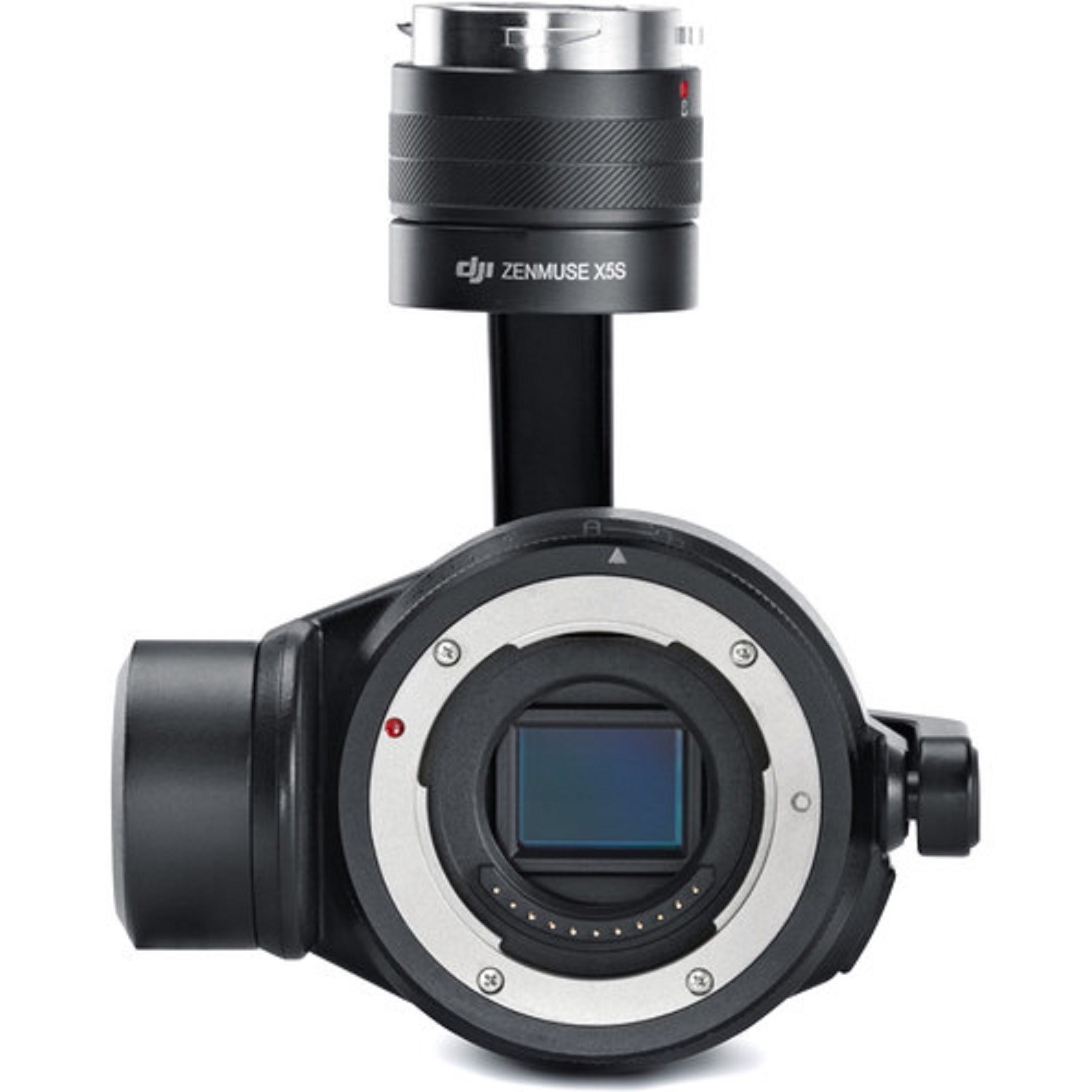

A New Generation of Zenmuse From DJI
Equipped with a new and improved Micro 4/3 sensor, the Zenmuse X5S has a dynamic range of 12.8 stops with a better signal to noise ratio and colour sensitivity than its predecessor, the X5R. It supports up to eight standard M4/3 lenses (including zoom lenses) with focal lengths ranging from 9mm-45mm, allowing more variety for image capture.
The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported.
Unlike the Inspire 1, the Inspire 2 separates the CineCore 2.0 image processing system from the camera and integrates it into the aircraft. This means that the sensor and optical system are detachable and can easily be attached using a newly designed quick-release connector. Designing the camera system in this way effectively protects the sensor from magnetic interference. It also allows a range of lightweight camera units to be connected as required by different scenes.
The updated M4/3 sensor allows the Zenmuse X5S to capture high-resolution images of incredibly high quality when combined with the CineCore 2.0 image processing system. With a pixel size of 3.4μm, this 20.8MP sensor captures more detail than the previous sensor. It has 12.8 stops of dynamic range as well as a better signal to noise ratio and colour sensitivity than the X5R, allowing it to create clear, low noise images in low light environments.
Using CineCore 2.0, the Zenmuse X5S records video at a maximum resolution of 5.2K/30fps in CinemaDNG 12bit1, 5.2K 30fps Apple ProRes 422 HQ and 4K 30fps Apple ProRes 4444 XQ 2. Additional recording options include video in 4K/60fps using H.264 or oversampling video in 4K/30fps using H.264/H.265, both with a bitrate of 100Mbps.
The DJI CINESSD card and a highly optimised FAT32/exFAT file system ensure that the Zenmuse X5S footage is transferred directly through the DJI CINESSD Station card reader to a computer at high speeds without any additional software. CinemaDNG or Apple ProRes workflows can be used for post-processing.
- 4K video at up to 30fps
- Record at 4096×2160 (24fps) or 3840×2160 (30/25fps)
- 16MP photographs
- 12.8 stops of dynamic range
- Requires the purchase of DJI Zenmuse X5 Vibration Absorbing Board for current Inspire 1 customers.
