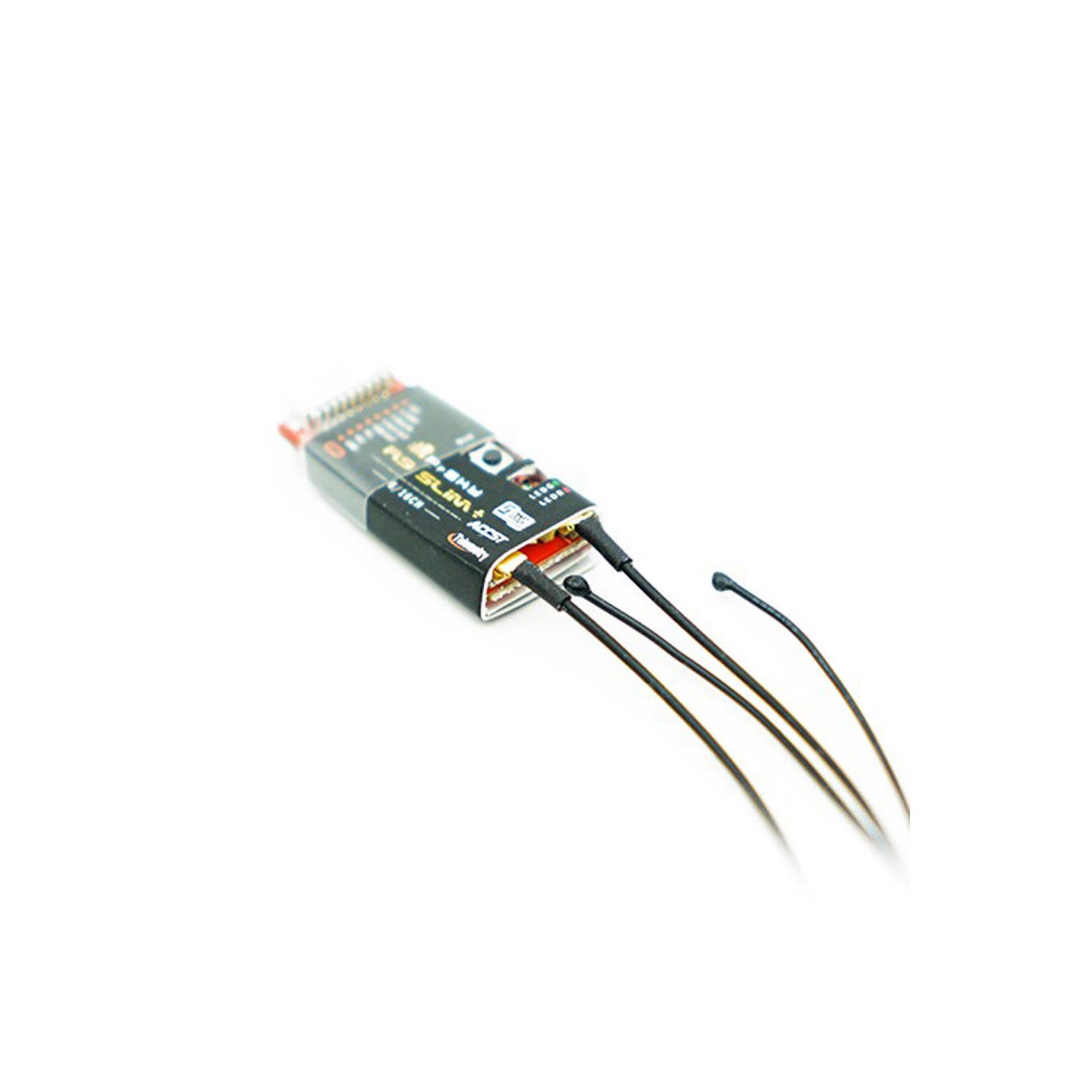

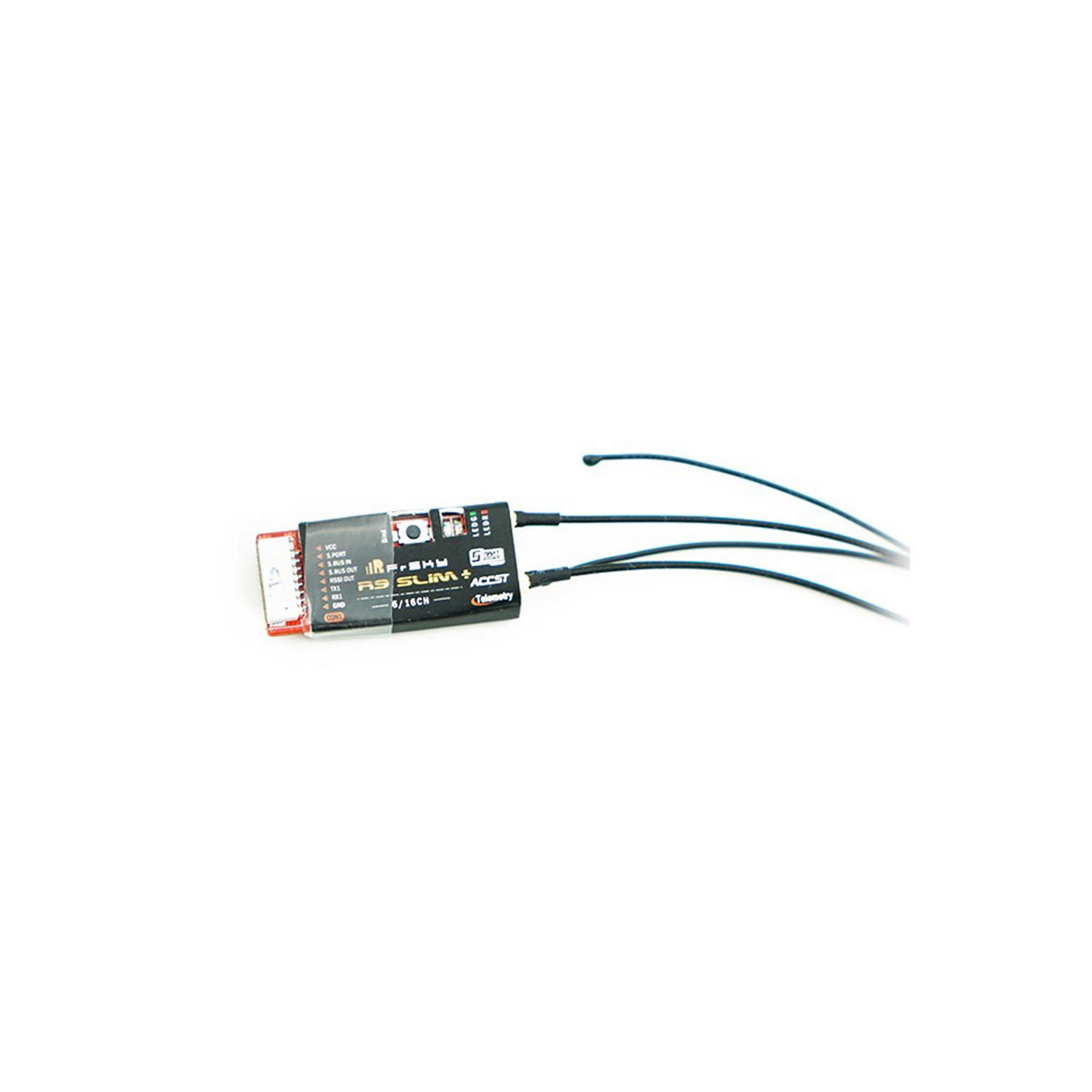

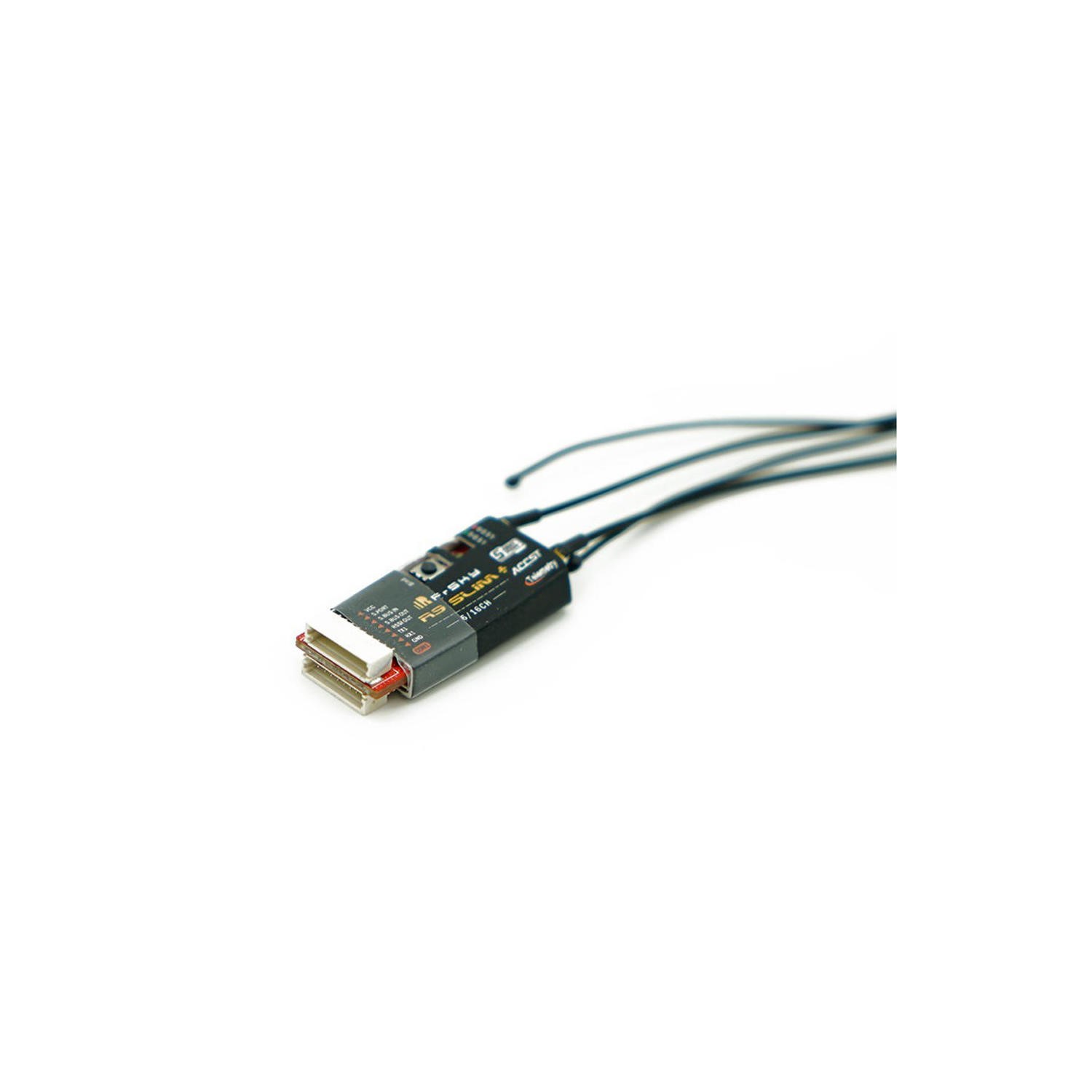

FrSky R9 Slim+ Receiver

The FrSky R9 Slim+ receiver is the updated version of R9 Slim, with optimized performance and 2 detachable antennas. The R9 Slim+ has all the features of the R9 Slim with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.

The R9 Slim+, as the name suggests is a skinny version of the popular long range R9 receiver. But despite the R9 slim being smaller, it is actually better than the older R9 as the slim now has lower latency with the same long range performance. The plus version listed here has some improvements over the regular R9 slim receiver. These improvements incude removable/replaceable antennas, and greater system compatibility thanks to its inverted SBUS and S.Port outputs. The Frsky R9 slim+ also includes redundancy functionality that ensures the safety of your aircraft. But the best part is that because it is smaller and lighter it can fit into many more types of aircraft.

Key Features

• 868MHz(EU Version)
• Performance optimized
• 2 detachable ipex connector antennas
• Small and conveniently setup
• Low latency and high precision
• Support redundancy function
• Smart Port enabled and support telemetry data transmission
• Battery voltage detection
• With RSSI output
• With inverted SBUS and S.Port outputs
• PCB protection with the comformal coating craftwork

Specifications

• Dimension: 32*13.5*5mm (L × W × H)
• Weight: 4.3g (with antennas)
• Number of Channels:
• EU Version: 6/8CH (Telemetry) / 6/16CH (Telemetry) / 6/16CH (No Telemetry)
• With RSSI Output: Analog 0~3.3V
• Operating Voltage Range: DC 3.5V~12.6V(3s Li-Battery)
• Operating Current: 100mA@5V
• Operating Range: Up to 10km or above
• Firmware Upgradable
• Compatibility: R9M and R9M Lite
