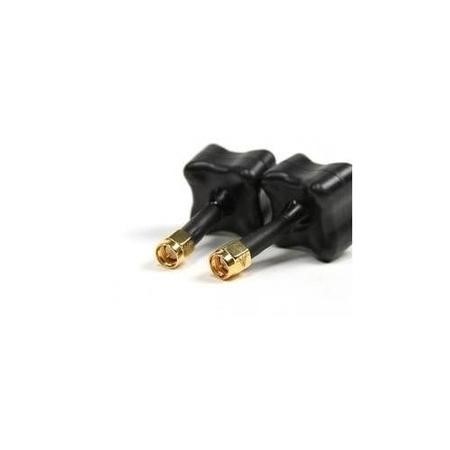

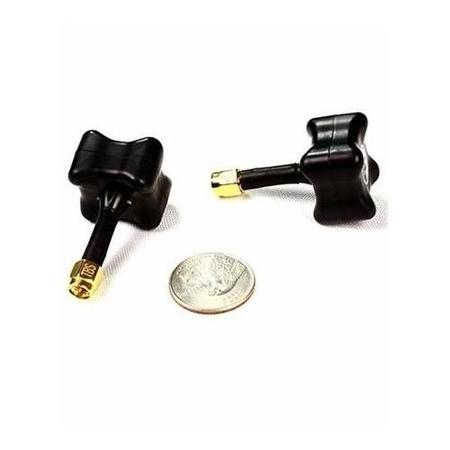

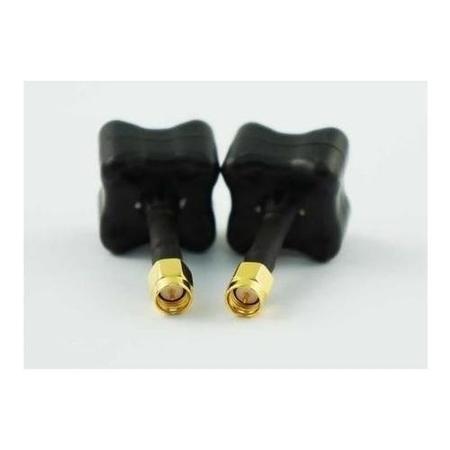

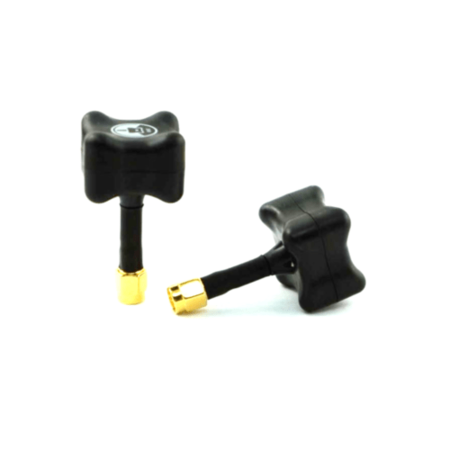

TBS Triumph SMA RHCP Stubby 2pc

Unlike many other antennas, TBS has produced great advances in the 5.8GHz technology, providing reliable and solid video transmission. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep partnered to create a new 5.8Ghz circular polarized antenna and ensured it should look and perform to the highest standards.

In our journey for the clearest video signal and best range possible, we have gone beyond the traditional bent lobes of Cloverleaf designs and invested time into variants to outperform cloverleaf antennas.

The antenna features a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection, we created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects.

FEATURES

Manufactured and tested to highest standards

Best in class range and signal quality

Extra compact and low weight

Ultrasonic welded and foam infused cover for ultimate crash-protection

Double-jacket semi-rigid cable for heavy impact resistance

TECHNICAL SPECIFICATIONS

Frequency range: 5500-6000MHz

Gain: 1.26dbic

Axial Ratio: 0.74

Cable: RG402 (heavy duty)

Weight: 8.5g - 9.8g

Height: 50mm, 1.97 in

Connector: SMA

PACKAGE CONTENTS

2x TBS Triumph antenna-Stub SMA(RHCP)
