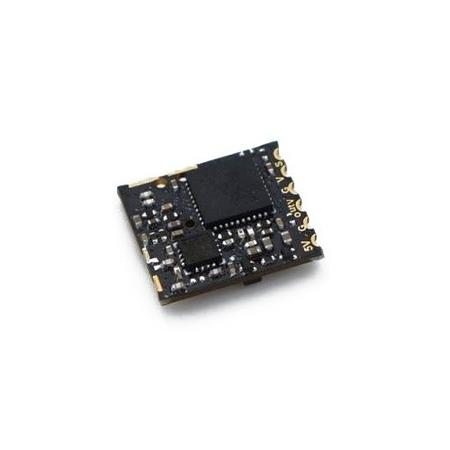

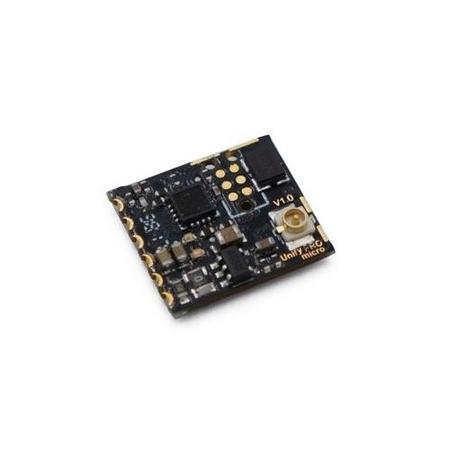

TBS Unify Pro Nano 5G8 VTX TBSUP5G8N

Quickfind: 1303497 SKU: TBSUP5G8N

Sorry, I’m out of stock!

For help finding something similar, just give us a call on 0871 971 3141, we can email you if it comes back into stock »

Similar products

Other customers search for...

Product Information

The world's smallest FPV video transmitter with 25mW / 50mW power levels, Smart Audio and u.FL

Size matters!

As builds become smaller and the innovation surrounding brushed and brushless micro quads accelerates, the need for a high-quality VTx increases. TBS has built the smallest VTx possible, focusing purely on size! Sporting the usual Unify Pro pedigree, a newly-revised u.FL connector and the industry-standard Smart Audio support. You will be blown away with the performance in terms of range, signal clarity and signal spacing.

Specifications

  • Input Voltage: 4.5V - 5V
  • Power levels: 25mW / 50mW

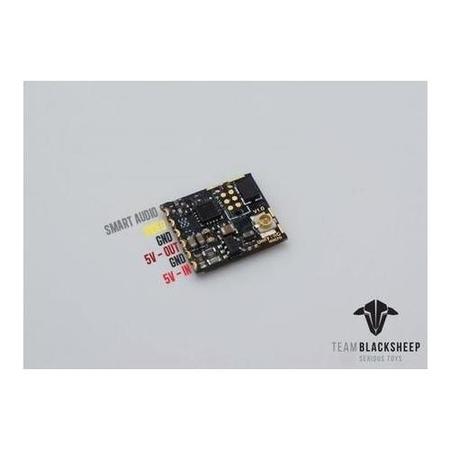

  • Interface: SmartAudio and capacitive button (or solder external tactile button separately - included!)
  • Weight: 1.4g (incl. antenna)

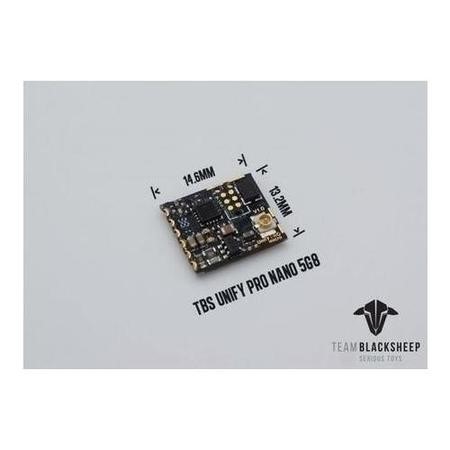

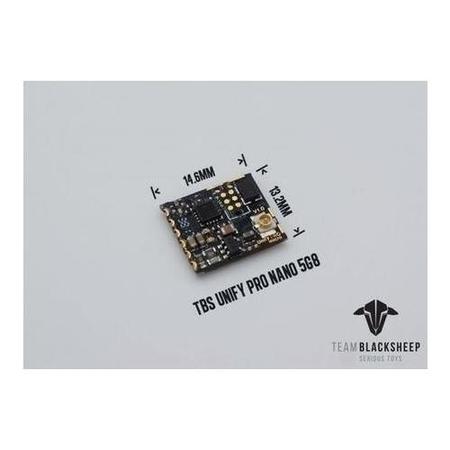

  • Size: 13.2mm x 14.6mm
  • Antenna connector: u.FL (upgraded)
  • Antenna length: 45.6mm (end to end)
  • TBS Tech: Smart Audio, Clean Switch

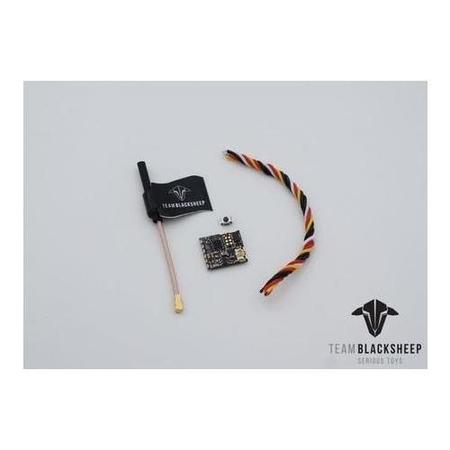

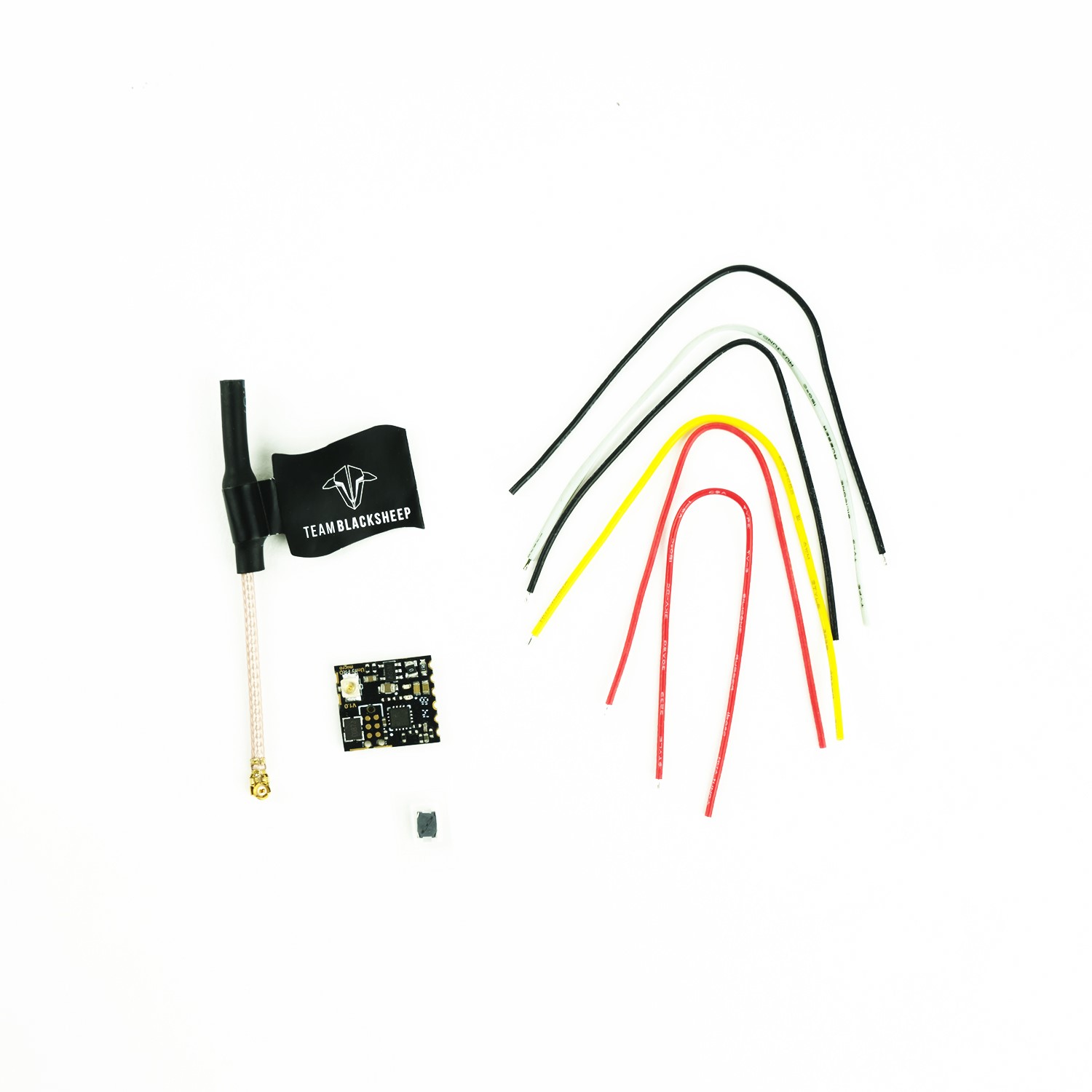

Includes

  • 1x Unify Pro nano 5G8 VTX
  • 1x button switch
  • 1x TBS UNIFY PRO 5G8 Linear Antenna
  • 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)

Manual

  • TBS Unify Pro Manual
