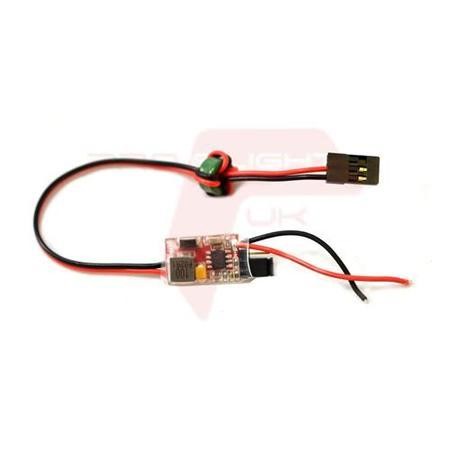

DJI UBEC 3A Input 2-6S LiPo / Ouput 5V or 12V Switchable

This UBEC was designed for FPV applications and offers the following:

• 5V for FPV Camera / 5.8Ghz Video TX / Flight Controller (FC)
• 12V for FPV Camera / 5.8Ghz Video TX / LED Lighting

Feature

• Imported Stable DC - DC Switch IC Design, Chip Efficiency up to 92%;
• Compact Design, the dimension is just of 20mm*13mm*4mm
• Very light weight which is only 5.5g
• Use of high-power closed magnetic power inductors and output lines with magnetic, greatly reducing electromagnetic interference and ensure the normal operation of the receiver
• Red LED light operation light

Specification

• Input: 2S ~ 6S LiPo （5.0V~26V)
• JR Output: 5V or 12V (Switchable by Jumper)
• please test the output voltage by voltage meter before connecting to the equipment
• Current: Max 3A
• Dimension: 20mm*13mm*4mm
• Weight: Approx 5.5g (with all cable as seen on the photo)
• Operation Light: Red LED
