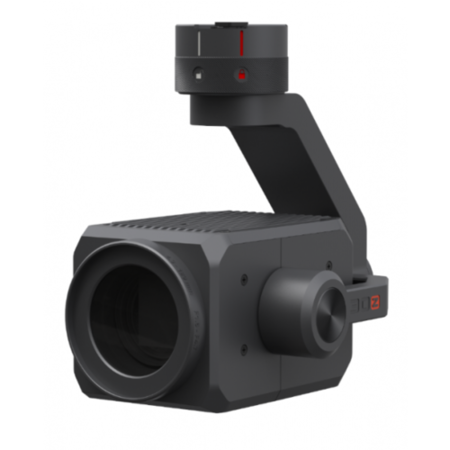

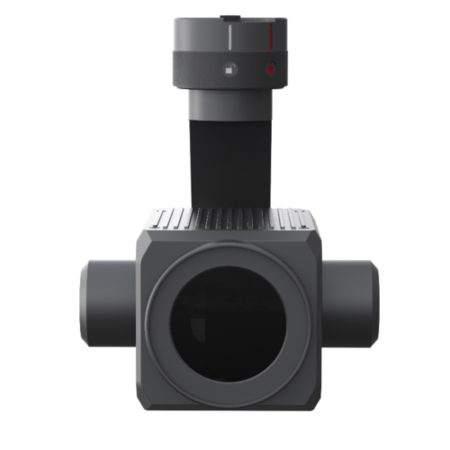

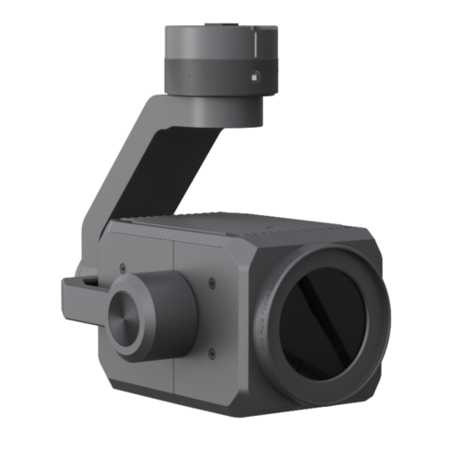

E30ZX 30x Zoom Camera for the Yuneec H520E
- 30x Optical Zoom
- 6x Digital Zoom
- Upto 20 minute flight time when on H520E
- 360° gimbal rotation
The E30ZX for the YUNEEC H520E Hexacopter is a powerful 30x zoom drone camera and makes it easy to zoom in on distant objects to gain valuable details. The compact camera housing contains a 1/2.8" CMOS sensor, which provides high-quality and stabilized recordings even in low light conditions.
In addition to the 30x optical zoom, the camera offers a 6x digital zoom for flexible application options such as inspection, search and rescue operations, monitoring, people search, and much more.
The YUNEEC E30ZX comes equipped with a 30x optical zoom, which can be further enhanced by 6x digital zoom. The maximum zoom speed from wide-angle to tele is just 2.55 seconds, enabling you to capture important information in a short amount of time even from a distance. Specific camera settings such as photography modes or white balance can be adjusted using the ST16E controller's integrated touch screen. The focusing of the camera is done automatically via autofocus. When using the zoom function of the E30ZX, the stabilization of the camera plays a particularly important role.
The integrated 3-axis gimbal automatically compensates slight gusts of wind and drone movements. It works with ± 0.02° accuracy and produces not only smooth video recordings but also incredibly sharp photos. The 320° rotation of the gimbal, with the landing gear of the drone retracted, provides an unrestricted panoramic view.
- Dimensions: 148 x 106 x 145 mm
- Camera Weight: 595 g
- Compatible Platforms: H520E
- Flight Time: 20 min (with H520E)
- Sensor: 1/2.8" CMOS
- Zoom: 30x optical + 6x digital
- Camera Lens:F1.6 (Wide) to F4.7 (Tele). 29 mm - 872 mm equivalent
- Effective Pixel:2.13 MP
- Photo Resolution:16:9 (1920x1080)
- Video Resolution:1080p @25/30/50/60 fps
- Photo Format:JPG
- Video Format:MP4
- Photo Modes:Single, Interval 5 - 60 sec
- Image Stabilisation: Gimbal stabilized
- FOV: 63.7° (Wide), 2.3° (Tele)
- ISO Range: 100 - 6400
- Shutter Speed: 1/30 - 1/6000s
- White Balance: Auto, Manual (2000-10000)
- Metering Mode:Average metering, Spot metering (Area operation 12x8)
- Exposure Modes: Auto, Shutter Priority, Aperture Priority, Manual
- Exposure Compensation:±3.0
- Control Range:Tilt: -120° to 30°, Pan: 360° unlimited
- Operating Temperature:-10°C - 45°C
- Minimum SD Card: Micro SD, Class 10 or UHS-1
