Yuneec E90X Camera for H520E

SKU: YUNE90XEU Quickfind Code: 1588972

This product is no longer available.

Top Features

  • 4K @ 60FPS Video Capture
  • 20MP still images
  • 3-axis gimbal
  • 330° Gimbal Rotation
  • 720p Live Stream capabilities

Ultra High Definition & Digital Zoom

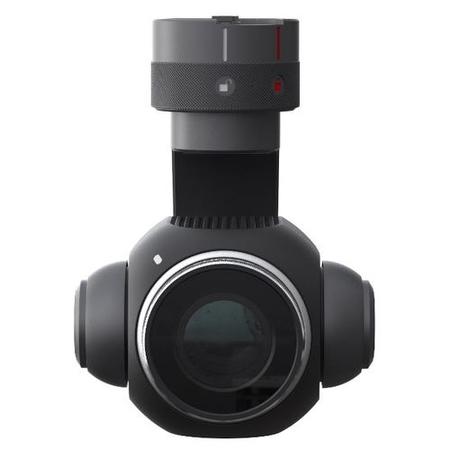

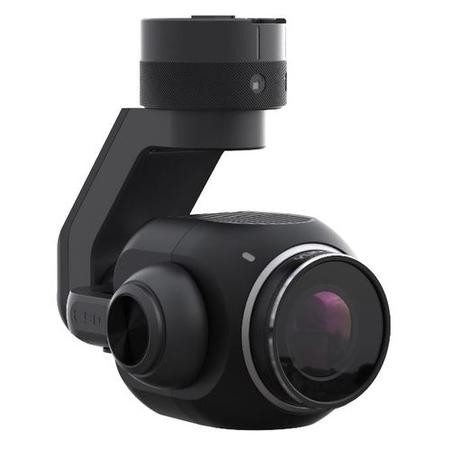

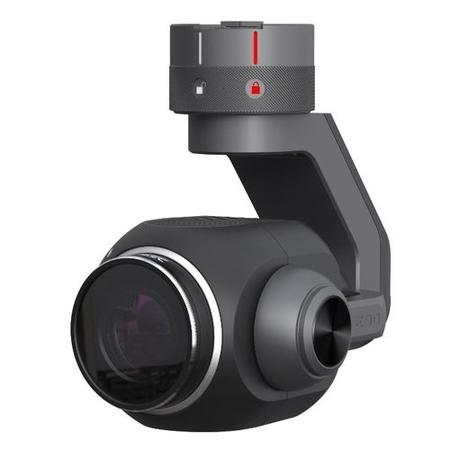

The E90X camera is a wide-angle, high resolution, gimbal stabilized imaging system perfectly suited for use in applications that require high quality photo and video. The E90X utilizes a 20 MP 1-inch sensor and the latest H2 high speed image processing chip. The digital zoom feature allows the user to digitally zoom in and out with two finger gesture. Zoom factor is up to 8x, whereas the view on the ST16S/E is lossless up to 4x.

The E90X with 330° rotation is used on the H520E, H520E-RTK.

Hot Swappable

The E90X camera-gimbal combination may be swapped for an E10T/X or CGOET/X camera-gimbal combo without power cycling the airframe. The quick release and lock mechanism of the gimbal and airframe mounting system enables fast and efficient exchange of cameras.

1 Inch SONY Sensor

The E90X utilizes a high aperture 1 inch CMOS imager that is capable of capturing still images with 20 megapixel resolution. The sensor provides exceptional dynamic range and improved signal-to-noise ratio. The E90X’s 23 mm lens equivalent provides wide angle view via an all glass lens system with low distortion and minimal lens dispersion. The E90X comes with a lens adapter ring threaded to fit 40.5mm standard ND filters for flexibility and convenience.

330° Rotation

A 3-axis stabilized gimbal with high precision provides a steady platform for the E90X camera. With a precision of +/- 0.02°, E90X shots are rock-solid whether loitering or flying full throttle.

Perfect Team

The H520E is the perfect partner for the E90X. The hexacopter is appropriate wherever long flight times and tried-and-tested technology are required in an all-in-one package. The six rotor safety as well as the waypoint technology and a lot of other features make the H520E and the E90X camera ideal for both, industrial and private applications.

General Specification

  • Weight: 300g
  • Operating Temp: -10°C - 40°C

Gimbal Specification

  • Max Angular Velocity: Tilt: 30°/s | Pan: 120°/s
  • Controllable Range: Tilt: +30° to 120° | Pan: +-165°

Camera Specification

  • Sensor: 1" CMOS Sensor, 20MP
  • Lens: FOV 91° f/2.8 23mm format equivalent
  • Photo Res: 3:2 5472x3684, 4:3 4864x3648, 16:9 5472x3080
  • Video Res: H.264
  • Photo Format: JPG, JPG+DNG
  • Video Format: MP$
  • Photo Modes: Single Shot, Time Lapse
  • Exposure Mode: Auto Exposure, Manual Exposure
  • Metering Mode: Spot Metering, Center Metering, Average Metering
  • Electronic Shutter Speed: 4-1/8000s
  • White Balance: Auto, Incandescent, Sunrise, Sunset, Cloudy, Flourescent, Lock
  • ISO Range: 100-6400
