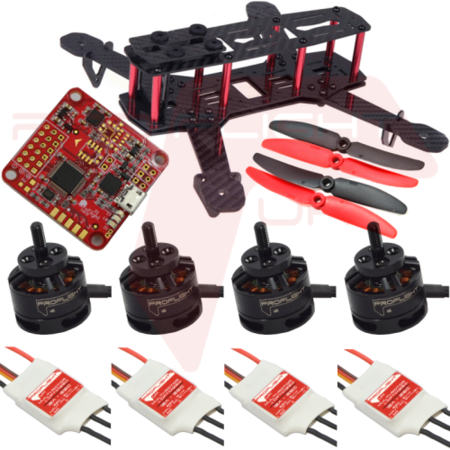

ProFlight ZMR 250 - Complete Mini Quad Bundle

This listing has everything you require to get started in Mini Quad style aircraft at a great price. Add your own receiver to get flying. If you require assembly please choose from the drop down menu below.

Frame Description:

The popular ZMR 250 quadcopter frame is made of all carbon fiber plate, with a weight of approximate 142 grams, and is 20 grams lighter than the composite carbon fiber version. The package includes all fixings to assemble the aircraft.

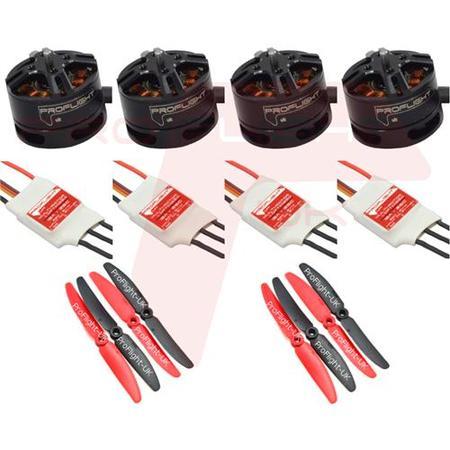

Power Set Description:

ProFlight-UK has developed, manufactured and optimised a full range of high quality 250 sized Multi-Rotor components including motors, ESCs and Carbon Propellers.

Motor Specification:

• Input voltage: 6V - 16.8V (2s - 4s LiPo)
• Max Current: 12A
• Size: 23mm x 18mm x 6mm
• Weight: 21g (Inc cables and connectors)
• Props Used: 5x3 - 6x3

*Includes pre-soldered 2mm bullet male bullet connectors for ESC connection.

ESC Specification:

• Input voltage: 6v - 16.8V (2-4S LiPo)
• BEC: 5V 1A
• Continuous current: 12A
• Size: 27mm x 22mm x 8mm
• Weight: 9g

Naze32 Description:

The Acro Naze32 Flight Controllers are designed and produced in Japan to tight specifications. Regarded worldwide as the ultimate Mini Quad flight controller it is an ideal candidate for the ZMR250 frame.

Features:

• Modern 32-bit processor running at 3.3V/72MHz
• Onboard USB for setup and configuration
• Super Bright LED indicator lights
• MultiWii-based configuration software for easy setup

 Specification:

• Height: 36 mm
• Width: 36 mm
• Weight: 6 g excluding headers (8 g including headers)
• Sensors: MPU6050
