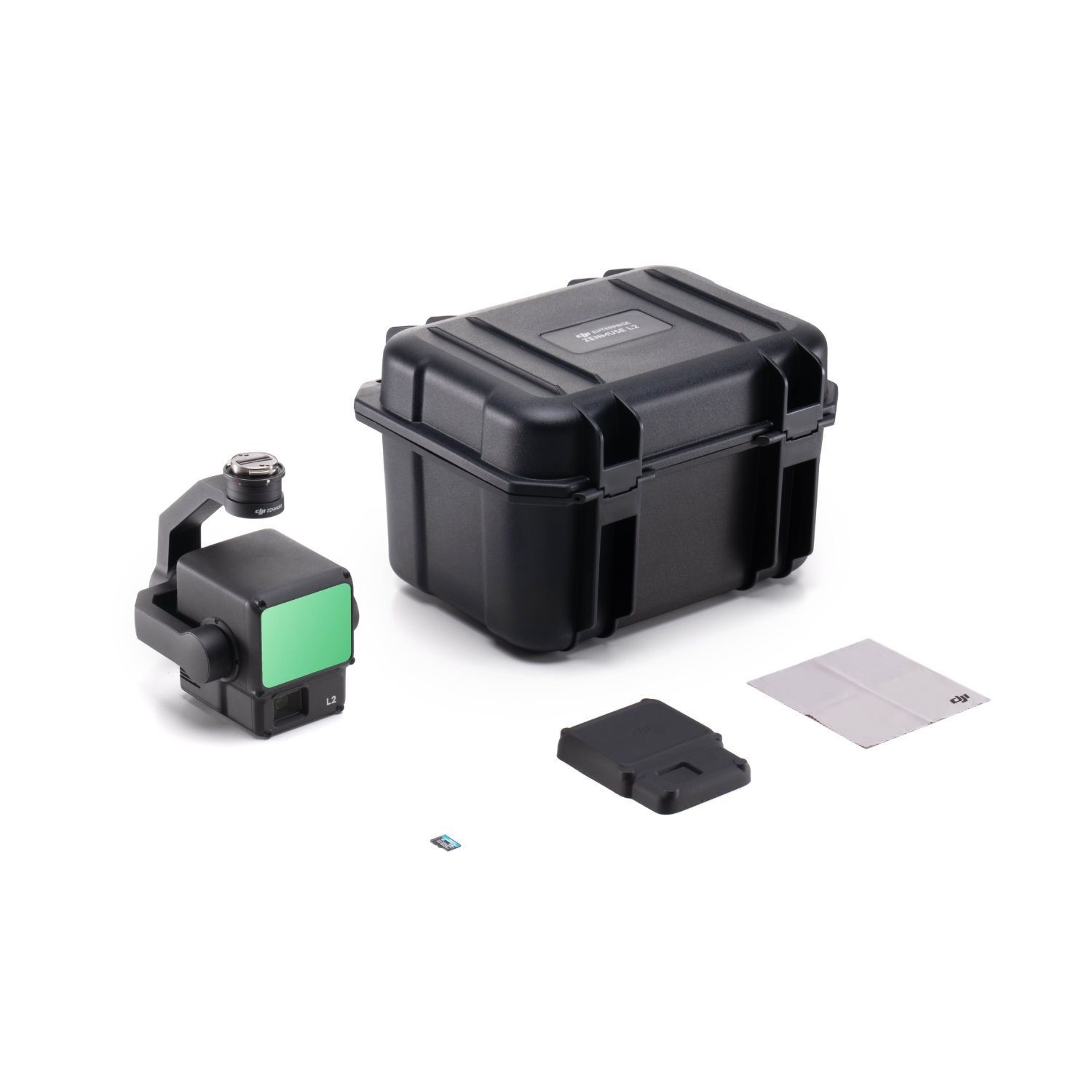

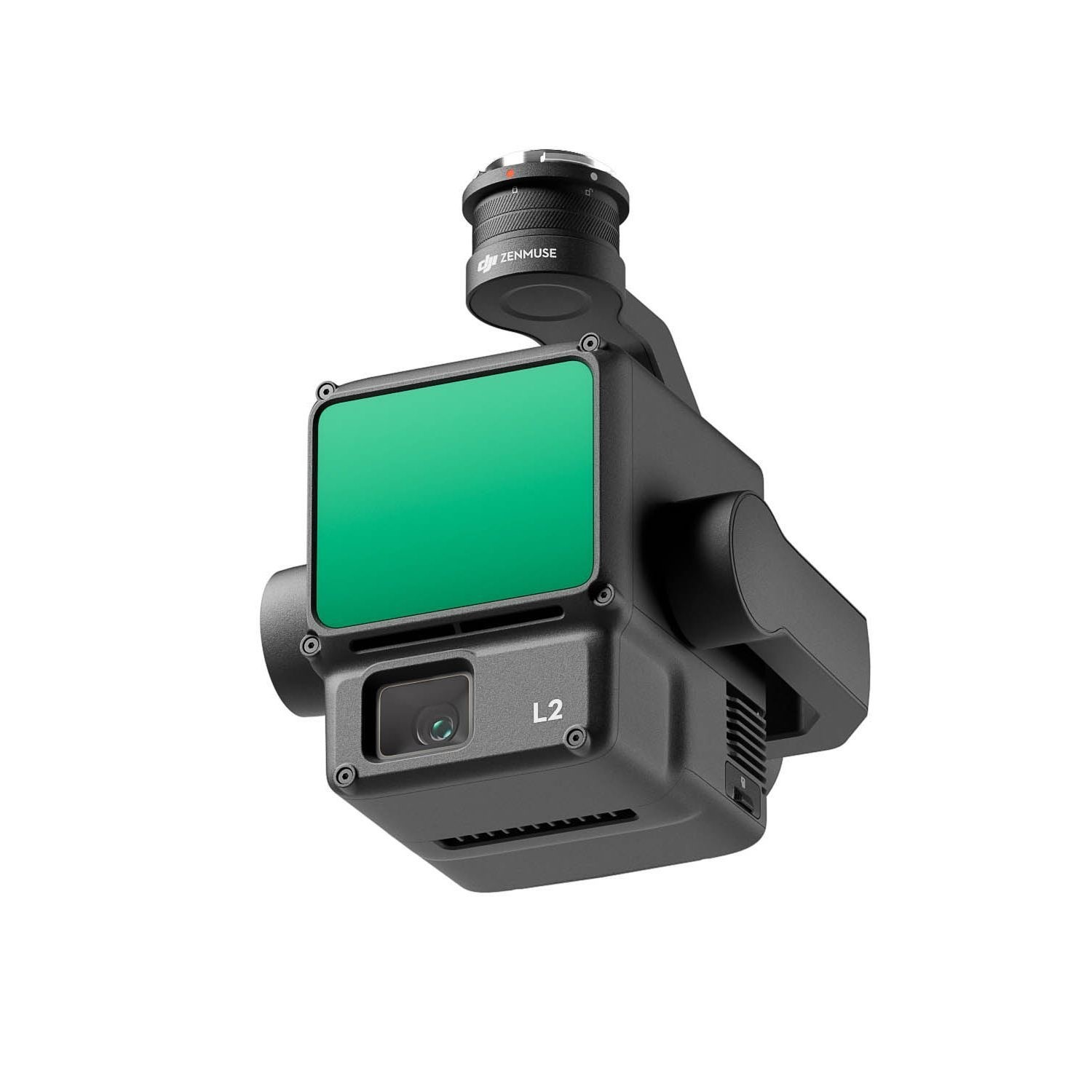

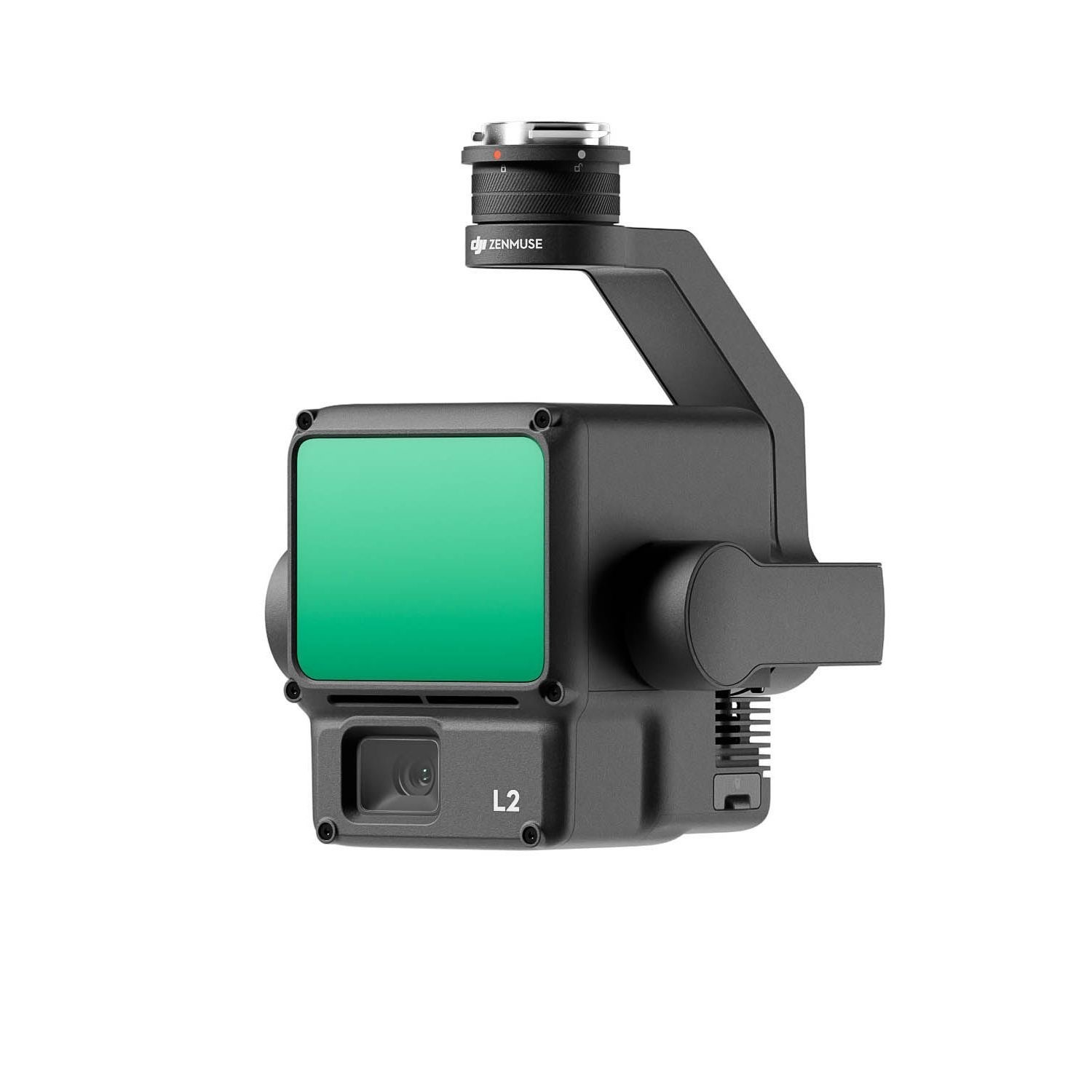

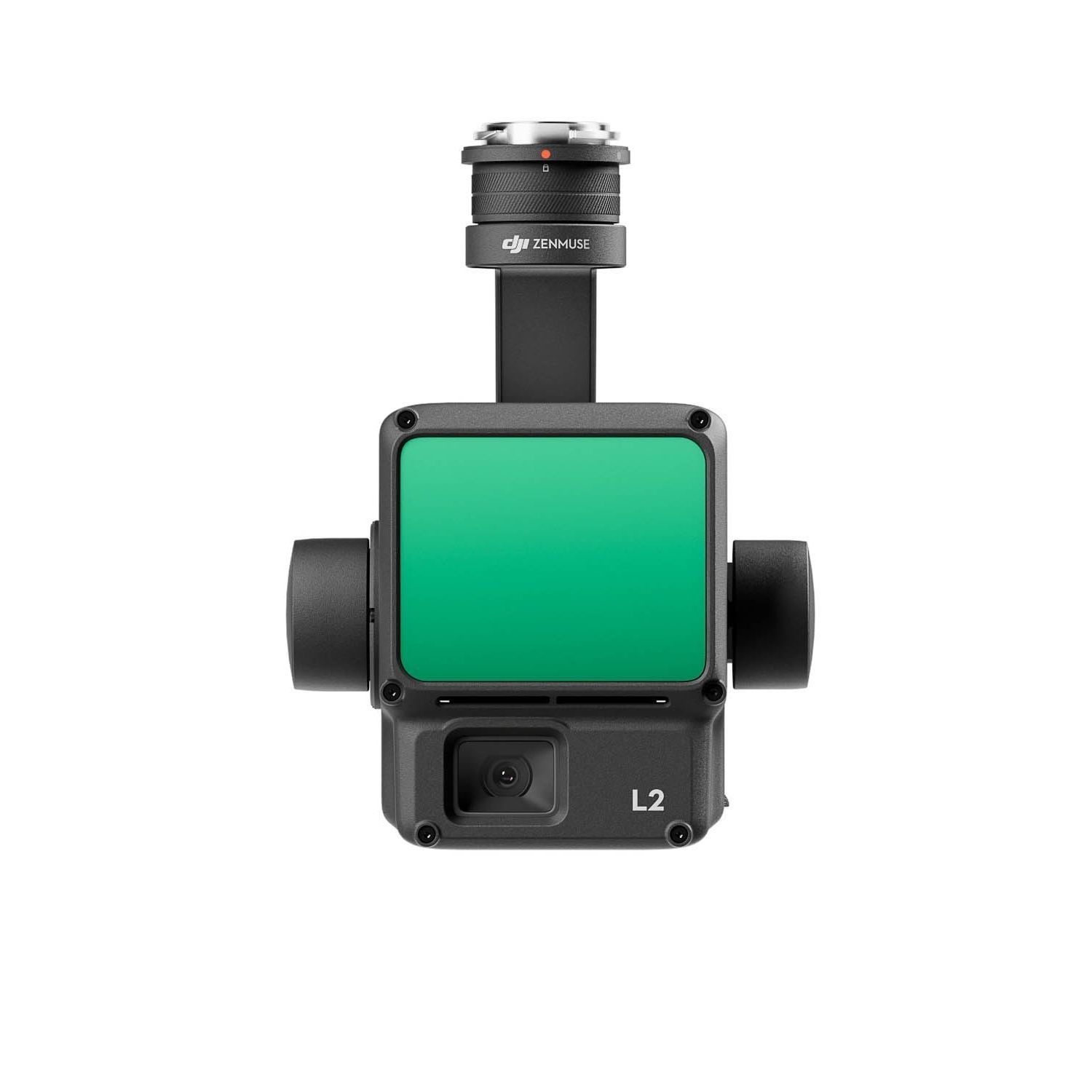

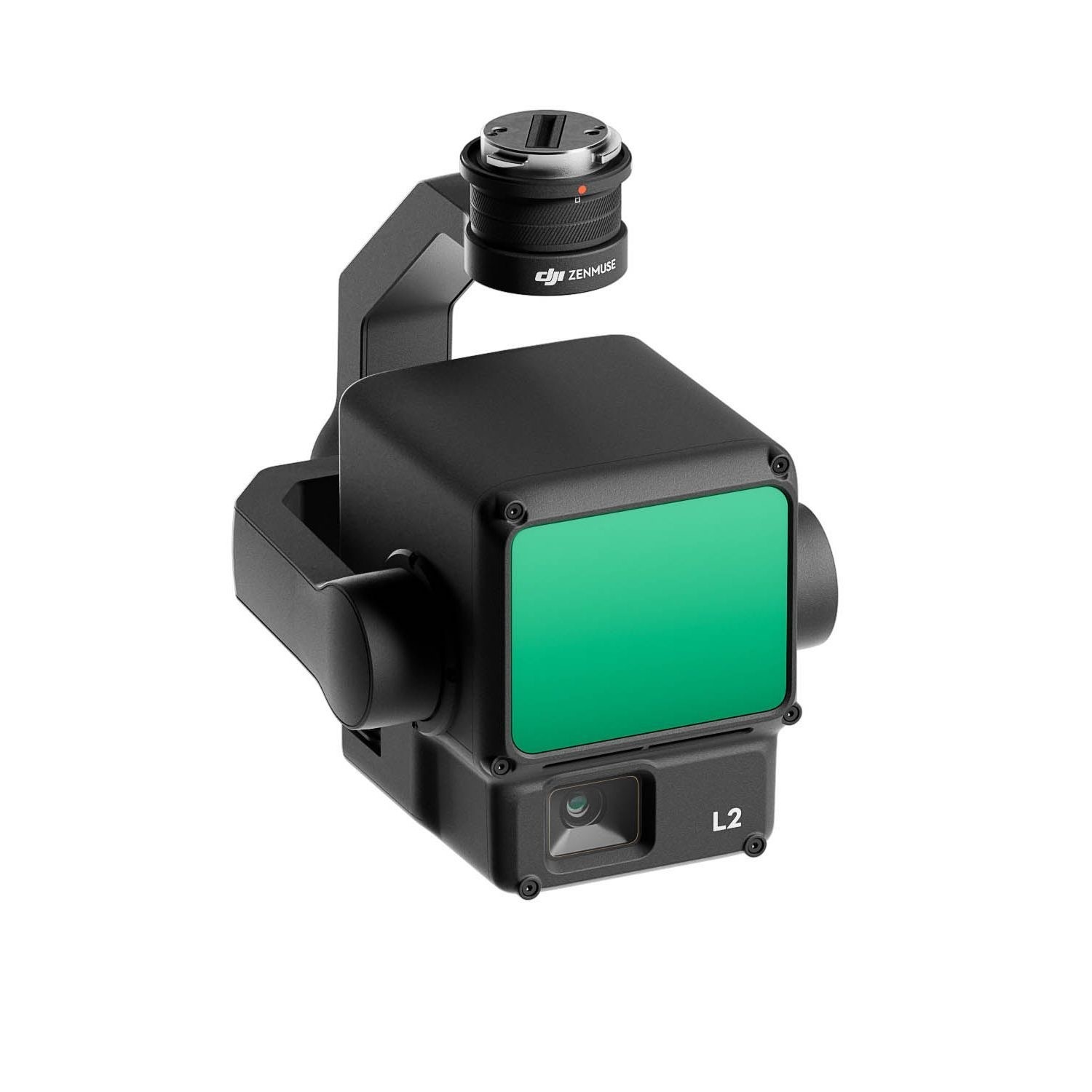

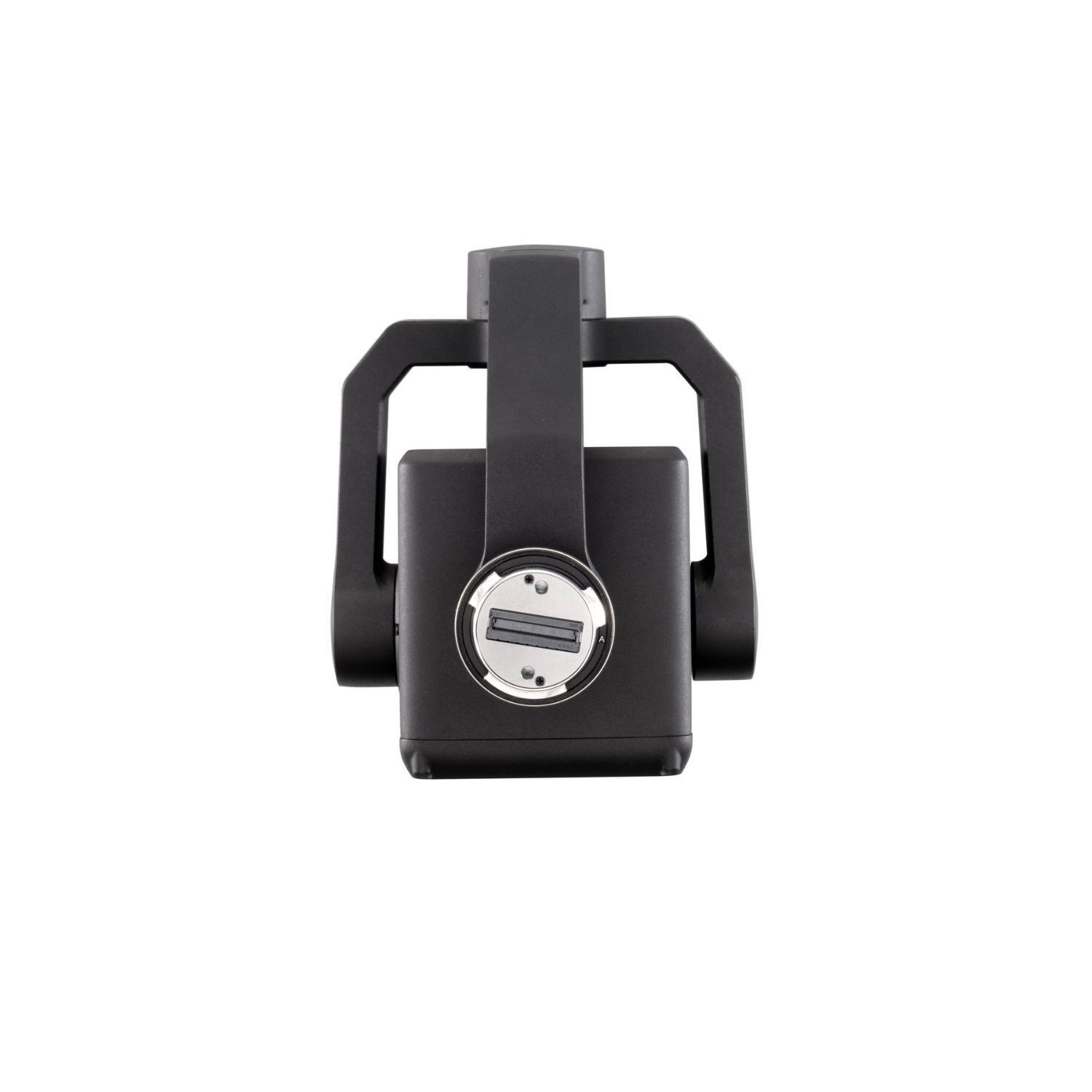

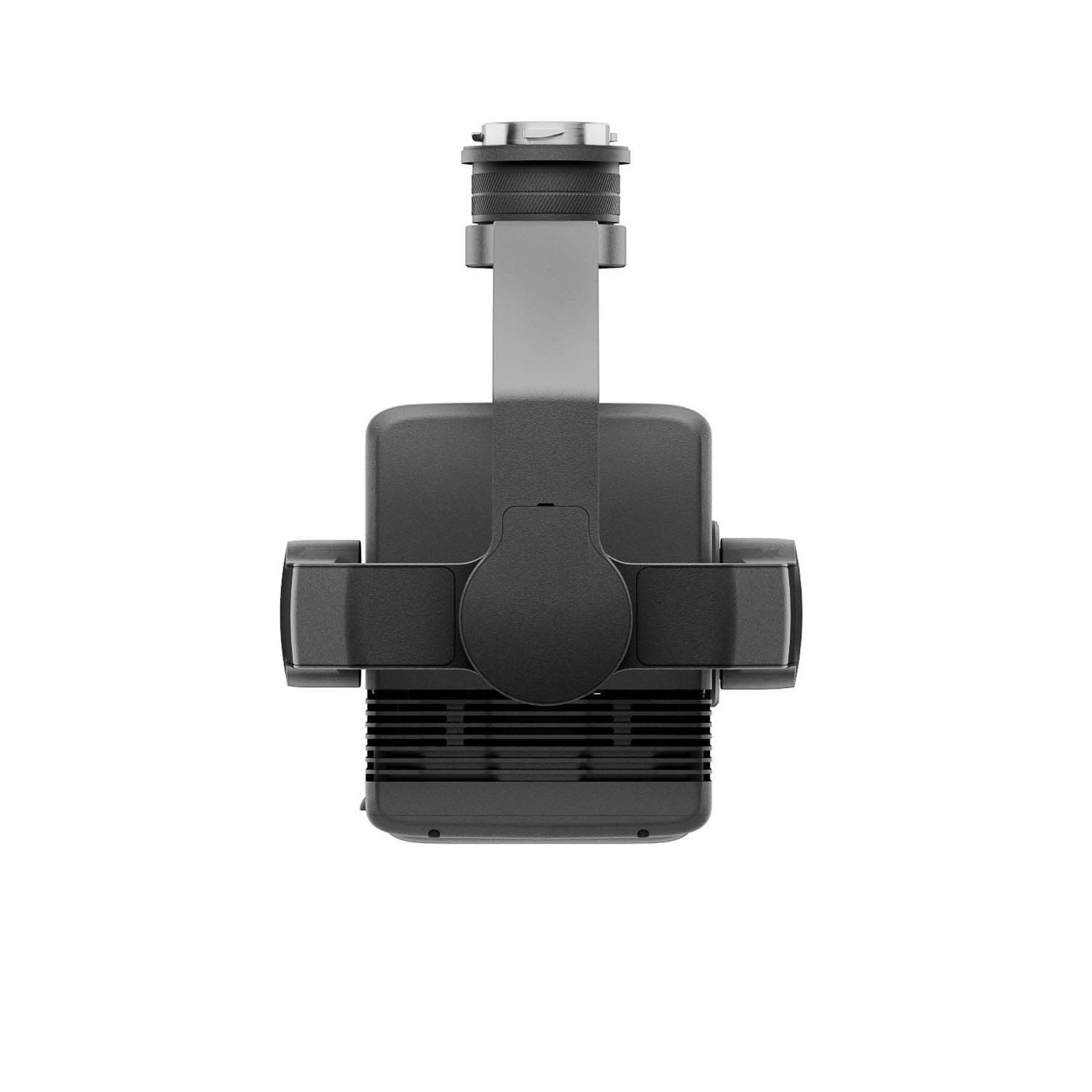

Zenmuse L2 – High-Precision Aerial LiDAR System
Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition. When used with DJI Terra, it delivers a turnkey solution for 3D data collection and high-accuracy post-processing.
30% Detection Range Increase
L2 can detect from 250 meters at 10% reflectivity and 100 klx, and up to 450 meters at 50% reflectivity and 0 klx. The typical operational altitude now extends up to 120 meters, notably enhancing operational safety and efficiency.
Smaller Laser Spots, Denser Point Clouds
With a reduced spot size of 4×12 cm @100m, only a fifth of that of L1, L2 not only detects smaller objects with more details but can also penetrate denser vegetation, generating more accurate digital elevation models (DEM).
Supports 5 Returns
In densely vegetated areas, L2 can capture more ground points beneath the foliage.
Effective Point Cloud Rate: 240,000 pts/s
In both single and multiple return modes, L2 can reach a max point cloud emission rate of 240,000 points per second, allowing the acquisition of more point cloud data in a given time frame.
Two Scanning Modes
L2 supports two scanning modes, offering flexibility for users based on their task demands. In repetitive scanning mode, L2’s LiDAR can achieve more uniform and accurate point clouds while meeting high-precision mapping requirements. In non-repetitive scanning mode, it offers deeper penetration for more structural information, making it suitable for power line inspection, forestry surveying, and other scenarios.
Frame-based Design
The frame-based design results in an effective point cloud data rate of up to 100%. Together with a three-axis gimbal, it brings more possibilities to surveying scenarios.
What Stands Out
High Precision - Vertical Accuracy: 4 cm; Horizontal Accuracy: 5cm
Exceptional Efficiency - 2.5 km2 covered in a single flight
Super Penetration - Smaller laser spots, denser point clouds
Detection Range - 250m @10% reflectivity, 100klx; 450m @50% reflectivty, 0klx
5 returns
Turnkey Solution
Point Cloud LiveView
Compatible drones:
DJI M350 with DJI RC Plus controller
DJI Matrice 300 with RC Plus controller
Please note to use the DJI L2 with the DJI Matrice 300 you will need the DJI RC Plus controller (Sold separately). You will not be able to use the original remote controller that comes with the DJI Matrice 300 after updating the firmware to enable the use of the DJI Matrice 300 with the DJI L2 payload.
