DJI Zenmuse H20 - Unleash the Power of One
"H" For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.
Welcome to DJI's first hybrid sensor solution – the Zenmuse H20 Series.
All The Sensors You Need – In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI's industrial drone platforms.

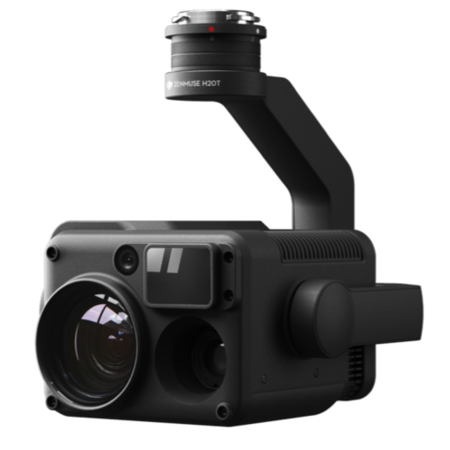

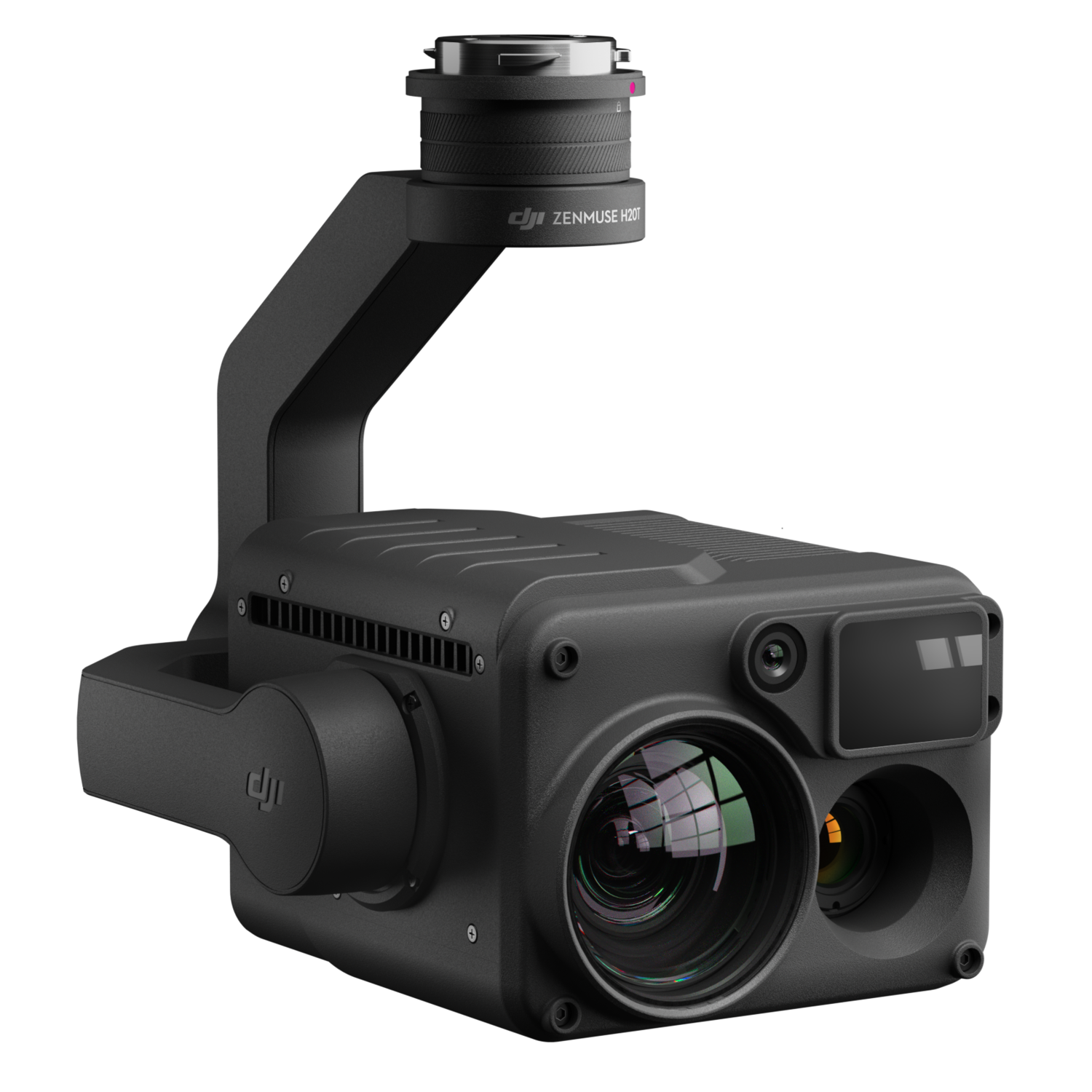

H20T – Quad-Sensor Solution
- 20 MP Zoom Camera
- 12 MP Wide Camera
- 1200 m LRF
- 640×512 px Radiometric Thermal Camera
Closing the Distance - Powerful Zoom Camera
- 23x Hybrid Optical Zoom
- 200x Max Zoom
- Video Resolution: 4K/30fps
Everything in View - Wide Camera
- Equivalent Focal Length: 24mm, DFOV: 82.9
- 12MP 1/2.3" CMOS Sensor
Precise Distance Data - Laser Rangefinder
- Range: 3m - 1200m
- Accuracy: +- (0.2m + Dx0.15%)
See the Unseen - Radiometric Thermal Camera
- DFOV: 40.6°
- Resolution: 640×512, Frame Rate: 30fps
- Thermal Sensitivity: ≤ email@example.com (NEDT)
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Visualize a specific band of temperatures to find what is important.
Adjust the colors applied to the thermal data based on the needs of specific scenarios.
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
- 12MP Wide Camera
- Radiometric Thermal Camera 640x512 px
- Night Scene Mode
- Active Image Stabilization & EIS
- 20MP Zoom Camera & Hybrid Optical Zoom
What's in the box?
- 1 x Zenmuse H20T Camera (microSD card included)
- 1 x Storage Case
- 1 x Lens Cleaning Cloth
